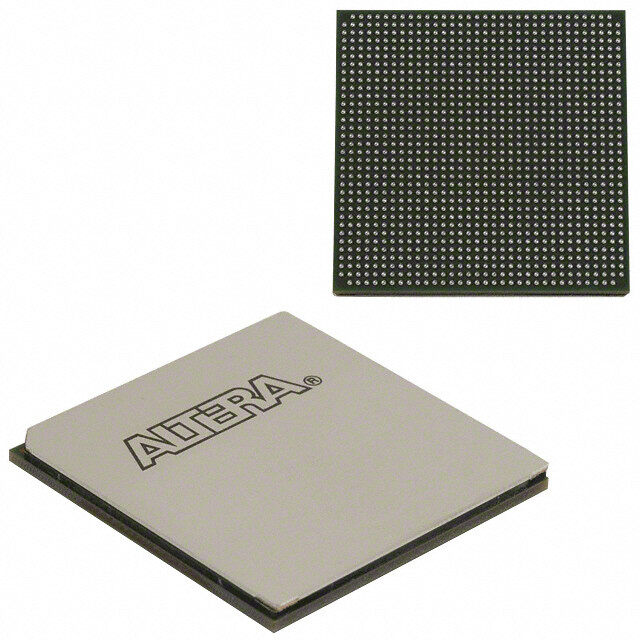

EP4SGX180FF35C2X
RoHS
/
Package FBGA
Category Integrated Circuits (ICs) / Embedded - FPGAs (Field Programmable Gate Array)
Description
CMOS OTHER 2008 Non-RoHS Compliant FPGA 85C 1.7MB 600MHz 930mV
PDF
/
Buying Options
Total Price: USD $4.97
Unit Price: USD $4.973515
≥1 USD $4.973515
≥10 USD $4.691999
≥100 USD $4.426422
≥500 USD $4.175863
≥1000 USD $3.939493
Inventory: 1510
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Mount Surface Mount
Package / Case FBGA
Number of Pins 1152
Technical
Published 2008
JESD-609 Code e0
Pbfree Code no
Moisture Sensitivity Level (MSL) 3
ECCN Code 3A001.A.7.A
Terminal Finish Tin/Lead (Sn63Pb37)
Max Operating Temperature 85°C
Min Operating Temperature 0°C
HTS Code 8542.39.00.01
Subcategory Field Programmable Gate Arrays
Technology CMOS
Terminal Position BOTTOM
Terminal Form BALL
Peak Reflow Temperature (Cel) 220
Supply Voltage 0.9V
Terminal Pitch 1mm
Reach Compliance Code not_compliant
Time@Peak Reflow Temperature-Max (s) 30
Number of Outputs 564
Qualification Status Not Qualified
Operating Supply Voltage 900mV
Power Supplies 0.91.2/31.52.5V
Temperature Grade OTHER
Max Supply Voltage 930mV
Min Supply Voltage 870mV
Memory Size 1.7MB
Number of I/O 564
RAM Size 1.7MB
Frequency (Max) 600MHz
Data Rate 600 Mbps
Programmable Logic Type FIELD PROGRAMMABLE GATE ARRAY
Number of Logic Elements/Cells 175750
Number of Logic Blocks (LABs) 7030
Number of Transceivers 16
Dimensions
Height Seated (Max) 3.4mm
Length 35mm
Width 35mm
Compliance
RoHS Status Non-RoHS Compliant
