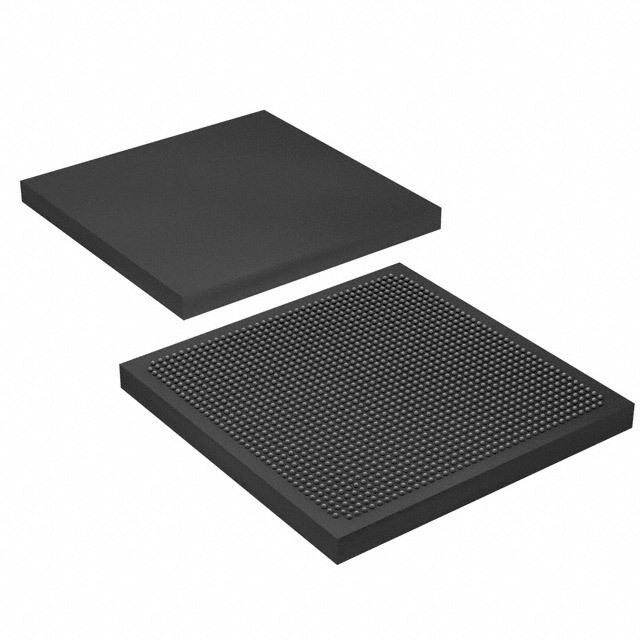

EP4SE530H40C2ES image
Favorite
EP4SE530H40C2ES image
Favorite

EP4SE530H40C2ES

Altera
RoHS
/
Package FCBGA
Category Integrated Circuits (ICs) / Embedded - FPGAs (Field Programmable Gate Array)
Description OTHER 2008 RoHS Compliant BALL FPGA 85C 3.3MB 800MHz 0.87V
PDF
/
Inventory: 5719
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status RoHS Compliant

Dimensions

Width 42.5mm
Length 42.5mm
Height Seated (Max) 3.7mm

Technical

Number of Logic Blocks (LABs) 21248
Number of Logic Elements/Cells 531200
Programmable Logic Type FIELD PROGRAMMABLE GATE ARRAY
Clock Frequency 800MHz
RAM Size 3.3MB
Number of I/O 976
Supply Voltage-Min (Vsup) 0.87V
Temperature Grade OTHER
Supply Voltage-Max (Vsup) 0.93V
Qualification Status Not Qualified
JESD-30 Code S-PBGA-B
Pin Count 1517
Time@Peak Reflow Temperature-Max (s) 30
Terminal Pitch 1mm
Supply Voltage 0.9V
Peak Reflow Temperature (Cel) 220
Terminal Form BALL
Terminal Position BOTTOM
HTS Code 8542.39.00.01
Min Operating Temperature 0°C
Max Operating Temperature 85°C
Terminal Finish TIN LEAD
ECCN Code 3A001.A.7.A
Number of Terminations 1517
Pbfree Code no
JESD-609 Code e0
Published 2008

Physical

Package / Case FCBGA
Mount Surface Mount
