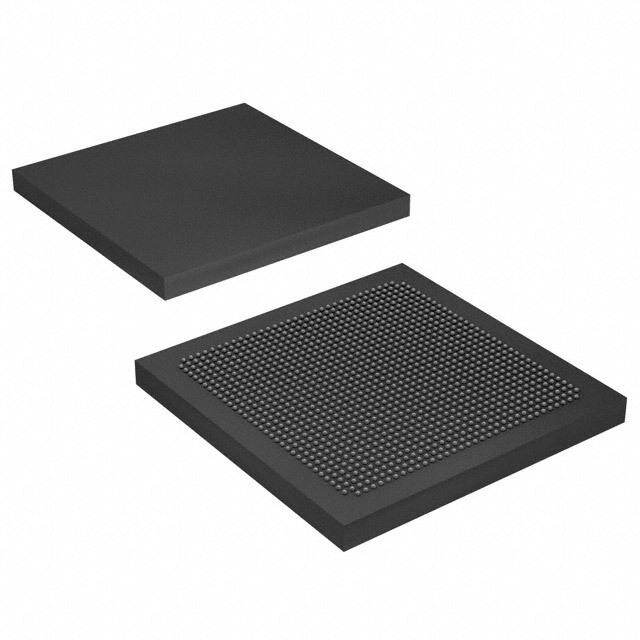

EP4SE530H35C4N
RoHS
/
Package BGA
Category Integrated Circuits (ICs) / Embedded - FPGAs (Field Programmable Gate Array)
Description
CMOS OTHER 2008 RoHS Compliant FPGA 85C 3.3MB 600MHz 930mV
PDF
/
Buying Options
Total Price: USD $2.68
Unit Price: USD $2.6828
≥1 USD $2.6828
≥10 USD $2.20115
≥100 USD $2.13275
≥500 USD $2.0634
≥1000 USD $1.995
Inventory: 9003
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mount Surface Mount
Package / Case BGA
Number of Pins 1152
Technical
Published 2008
JESD-609 Code e1
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 4
ECCN Code 3A001.A.7.A
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Max Operating Temperature 85°C
Min Operating Temperature 0°C
HTS Code 8542.39.00.01
Subcategory Field Programmable Gate Arrays
Technology CMOS
Terminal Position BOTTOM
Terminal Form BALL
Peak Reflow Temperature (Cel) 245
Supply Voltage 0.9V
Terminal Pitch 1mm
Time@Peak Reflow Temperature-Max (s) 40
Number of Outputs 744
Qualification Status Not Qualified
Operating Supply Voltage 900mV
Power Supplies 0.91.2/31.52.5V
Temperature Grade OTHER
Max Supply Voltage 930mV
Min Supply Voltage 870mV
Memory Size 3.3MB
Number of I/O 744
RAM Size 3.3MB
Frequency (Max) 600MHz
Programmable Logic Type FIELD PROGRAMMABLE GATE ARRAY
Number of Logic Elements/Cells 531200
Number of Logic Blocks (LABs) 21248
Dimensions
Height Seated (Max) 3.7mm
Length 42.5mm
Width 42.5mm
Compliance
RoHS Status RoHS Compliant
