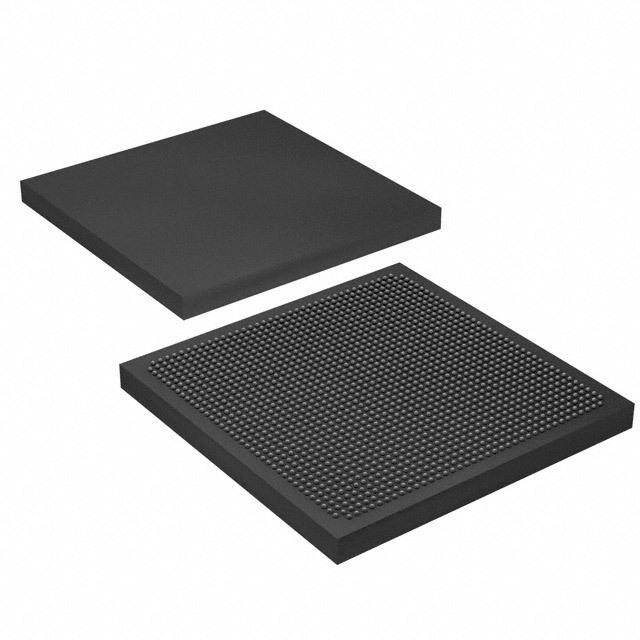

EP4S40G5H40I3N
RoHS
/
Package BGA
Category Integrated Circuits (ICs) / Embedded - FPGAs (Field Programmable Gate Array)
Description
CMOS 2008 RoHS Compliant BALL FPGA 100C 3.3MB 600MHz 950mV
PDF
/
Inventory: 4773
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mount Surface Mount
Package / Case BGA
Number of Pins 1517
Technical
Published 2008
JESD-609 Code e1
Pbfree Code yes
Moisture Sensitivity Level (MSL) 4
ECCN Code 3A001.A.7.A
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Max Operating Temperature 100°C
Min Operating Temperature -40°C
HTS Code 8542.39.00.01
Subcategory Field Programmable Gate Arrays
Technology CMOS
Terminal Position BOTTOM
Terminal Form BALL
Peak Reflow Temperature (Cel) 245
Supply Voltage 0.95V
Terminal Pitch 1mm
Time@Peak Reflow Temperature-Max (s) 40
Number of Outputs 654
Qualification Status Not Qualified
Operating Supply Voltage 950mV
Supply Voltage-Max (Vsup) 0.98V
Power Supplies 0.951.2/31.52.5V
Memory Size 3.3MB
Number of I/O 654
RAM Size 3.3MB
Frequency (Max) 600MHz
Data Rate 600 Mbps
Programmable Logic Type FIELD PROGRAMMABLE GATE ARRAY
Number of Logic Elements/Cells 531200
Number of Logic Blocks (LABs) 21248
Number of Transceivers 36
Dimensions
Height Seated (Max) 3.8mm
Length 42.5mm
Width 42.5mm
Compliance
RoHS Status RoHS Compliant
