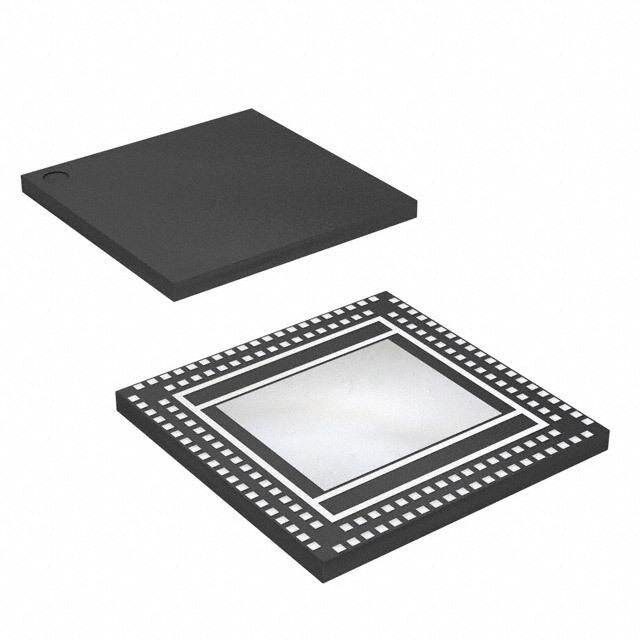

EP4CGX15BN11C7N image
Favorite
EP4CGX15BN11C7N image
Favorite

EP4CGX15BN11C7N

Altera
RoHS
/
Package QFN
Category Integrated Circuits (ICs) / Embedded - FPGAs (Field Programmable Gate Array)
Description OTHER 2003 RoHS Compliant BUTT FPGA 85C 67.5kB 200MHz 1.24V
PDF
/
Inventory: 8007
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status RoHS Compliant

Dimensions

Width 11mm
Length 11mm
Height Seated (Max) 0.8mm

Technical

Number of CLBs 900
Number of Transceivers 2
Number of Logic Blocks (LABs) 900
Number of Logic Elements/Cells 14400
Programmable Logic Type FIELD PROGRAMMABLE GATE ARRAY
Data Rate 2.5 Gbps
Frequency (Max) 200MHz
RAM Size 67.5kB
Number of I/O 72
Memory Size 67.5kB
Min Supply Voltage 1.16V
Max Supply Voltage 1.24V
Temperature Grade OTHER
Operating Supply Voltage 1.2V
Qualification Status Not Qualified
Number of Outputs 72
Pin Count 148
Time@Peak Reflow Temperature-Max (s) 40
Terminal Pitch 0.5mm
Supply Voltage 1.2V
Peak Reflow Temperature (Cel) 260
Terminal Form BUTT
Terminal Position BOTTOM
Subcategory Field Programmable Gate Arrays
Min Operating Temperature 0°C
Max Operating Temperature 85°C
Terminal Finish GOLD (8) OVER NICKEL (591)
Number of Terminations 148
Moisture Sensitivity Level (MSL) 3
Part Status Discontinued
Pbfree Code yes
JESD-609 Code e4
Published 2003

Physical

Number of Pins 148
Package / Case QFN
Mount Surface Mount
