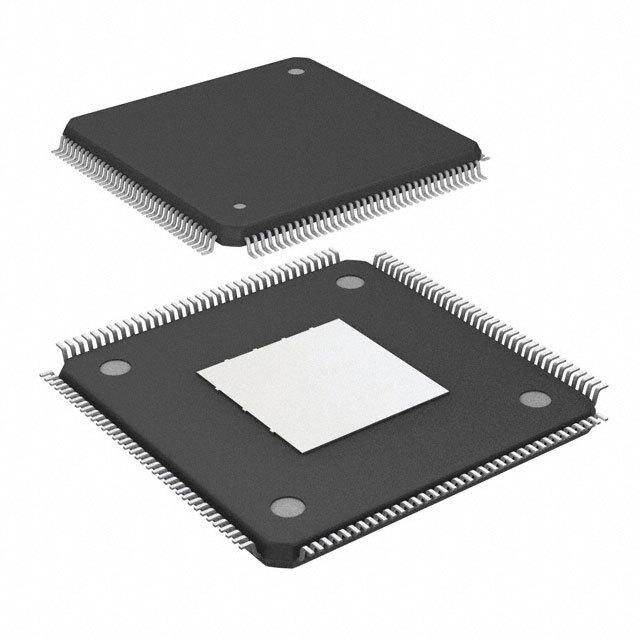

EP4CE6E22C9LN image
Favorite
EP4CE6E22C9LN image
Favorite

EP4CE6E22C9LN

Altera
RoHS
/
Package QFP
Category Integrated Circuits (ICs) / Embedded - FPGAs (Field Programmable Gate Array)
Description OTHER 1997 RoHS Compliant GULL WING FPGA 85C 33.8kB 200MHz 1.24V
PDF
/
Inventory: 9354
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status RoHS Compliant

Dimensions

Width 20mm
Length 20mm
Height Seated (Max) 1.65mm

Technical

Number of CLBs 392
Speed Grade 9
Number of Logic Blocks (LABs) 392
Number of Logic Elements/Cells 6272
Programmable Logic Type FIELD PROGRAMMABLE GATE ARRAY
Frequency (Max) 200MHz
RAM Size 33.8kB
Number of I/O 91
Memory Size 33.8kB
Min Supply Voltage 1.16V
Max Supply Voltage 1.24V
Temperature Grade OTHER
Power Supplies 11.2/3.32.5V
Operating Supply Voltage 1.2V
Qualification Status Not Qualified
Number of Outputs 91
Pin Count 144
Time@Peak Reflow Temperature-Max (s) 40
Terminal Pitch 0.5mm
Supply Voltage 1V
Peak Reflow Temperature (Cel) 260
Terminal Form GULL WING
Terminal Position QUAD
Subcategory Field Programmable Gate Arrays
Min Operating Temperature 0°C
Max Operating Temperature 85°C
Terminal Finish MATTE TIN (472) OVER COPPER
Number of Terminations 144
Moisture Sensitivity Level (MSL) 3
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Published 1997

Physical

Number of Pins 144
Package / Case QFP
Mount Surface Mount

Supply Chain

Factory Lead Time 16 Weeks
