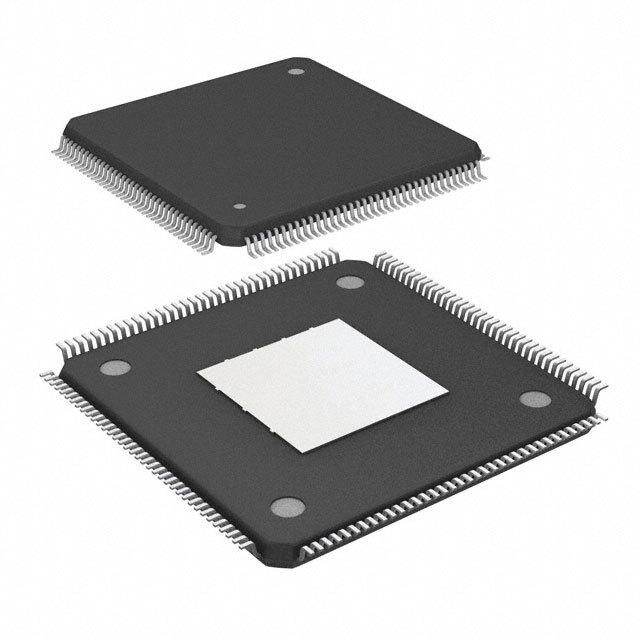

EP4CE22E22C8LN
RoHS
/
Package QFP
Category Integrated Circuits (ICs) / Embedded - FPGAs (Field Programmable Gate Array)
Description
OTHER 2003 RoHS Compliant GULL WING FPGA 85C 74.3kB 200MHz 1.2V
PDF
/
Inventory: 2531
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mount Surface Mount
Package / Case QFP
Technical
Published 2003
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 3
Number of Terminations 144
Terminal Finish MATTE TIN (472) OVER COPPER
Max Operating Temperature 85°C
Min Operating Temperature 0°C
HTS Code 8542.39.00.01
Subcategory Field Programmable Gate Arrays
Terminal Position QUAD
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 260
Supply Voltage 1V
Terminal Pitch 0.5mm
Time@Peak Reflow Temperature-Max (s) 40
Pin Count 144
Number of Outputs 79
Qualification Status Not Qualified
Operating Supply Voltage 1.2V
Supply Voltage-Max (Vsup) 1.03V
Power Supplies 11.2/3.32.5V
Temperature Grade OTHER
Memory Size 74.3kB
Number of I/O 79
RAM Size 74.3kB
Frequency (Max) 200MHz
Number of Inputs 79
Programmable Logic Type FIELD PROGRAMMABLE GATE ARRAY
Number of Logic Elements/Cells 22320
Number of Logic Blocks (LABs) 1395
Dimensions
Height Seated (Max) 1.65mm
Length 20mm
Width 20mm
Compliance
RoHS Status RoHS Compliant
