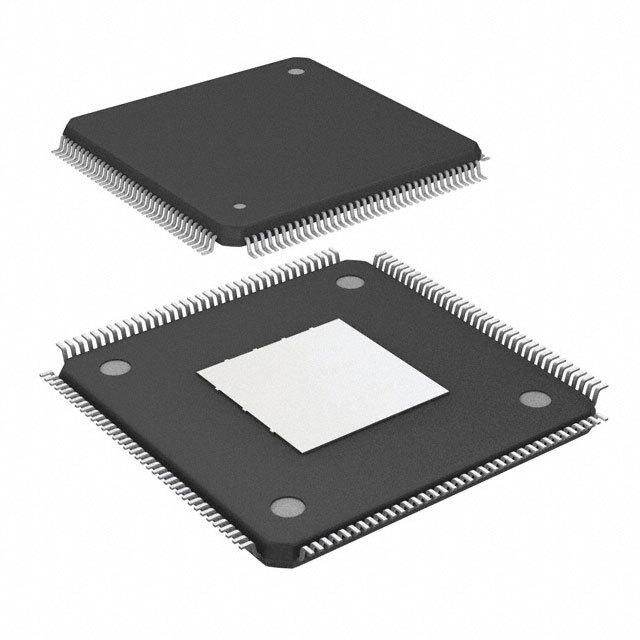

EP4CE15E22C8L
RoHS
/
Package QFP
Category Integrated Circuits (ICs) / Embedded - FPGAs (Field Programmable Gate Array)
Description
OTHER 2003 RoHS Compliant GULL WING FPGA 85C 63kB 200MHz 1.24V
PDF
/
Buying Options
Total Price: USD $84.47
Unit Price: USD $84.473411
≥1 USD $84.473411
≥10 USD $79.691897
≥100 USD $75.18104
≥500 USD $70.925513
≥1000 USD $66.910855
Inventory: 5395
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 20mm
Length 20mm
Height Seated (Max) 1.65mm
Technical
Number of CLBs 963
Speed Grade 8
Number of Logic Blocks (LABs) 963
Number of Logic Elements/Cells 15408
Programmable Logic Type FIELD PROGRAMMABLE GATE ARRAY
Frequency (Max) 200MHz
RAM Size 63kB
Number of I/O 81
Memory Size 63kB
Min Supply Voltage 1.16V
Max Supply Voltage 1.24V
Temperature Grade OTHER
Power Supplies 11.2/3.32.5V
Operating Supply Voltage 1.2V
Qualification Status Not Qualified
Number of Outputs 81
Pin Count 144
Time@Peak Reflow Temperature-Max (s) 30
Terminal Pitch 0.5mm
Supply Voltage 1V
Peak Reflow Temperature (Cel) 220
Terminal Form GULL WING
Terminal Position QUAD
Subcategory Field Programmable Gate Arrays
Min Operating Temperature 0°C
Max Operating Temperature 85°C
Terminal Finish TIN LEAD
Number of Terminations 144
Pbfree Code no
JESD-609 Code e0
Published 2003
Physical
Number of Pins 144
Package / Case QFP
Mount Surface Mount
Supply Chain
Factory Lead Time 16 Weeks
