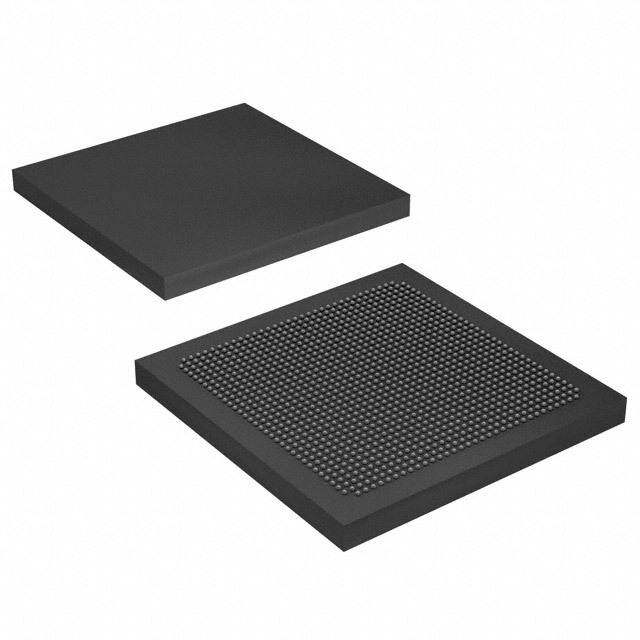

EP2SGX90EF1152C5ES
RoHS
/
Package FBGA
Category Integrated Circuits (ICs) / Embedded - FPGAs (Field Programmable Gate Array)
Description
Contains Lead CMOS COMMERCIAL EXTENDED 2007 FPGA 70C 551.8kB 609.76MHz 1.25V
PDF
/
Buying Options
Total Price: USD $5.36
Unit Price: USD $5.36465
≥1 USD $5.36465
≥10 USD $4.40135
≥100 USD $4.26455
≥500 USD $4.1268
≥1000 USD $3.98905
Inventory: 1192
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status RoHS Compliant
Dimensions
Width 35mm
Length 35mm
Height Seated (Max) 3.5mm
Technical
Number of CLBs 4828
Number of Logic Blocks (LABs) 4548
Number of Logic Elements/Cells 90960
Programmable Logic Type FIELD PROGRAMMABLE GATE ARRAY
Organization 4828 CLBS
RAM Size 551.8kB
Number of I/O 558
Min Supply Voltage 1.15V
Max Supply Voltage 1.25V
Temperature Grade COMMERCIAL EXTENDED
Operating Supply Voltage 1.2V
Qualification Status Not Qualified
Time@Peak Reflow Temperature-Max (s) 30
Frequency 609.76MHz
Terminal Pitch 1mm
Supply Voltage 1.2V
Peak Reflow Temperature (Cel) 220
Terminal Form BALL
Terminal Position BOTTOM
Technology CMOS
HTS Code 8542.39.00.01
Min Operating Temperature 0°C
Max Operating Temperature 70°C
Terminal Finish TIN LEAD
ECCN Code 3A001.A.7.A
Pbfree Code no
JESD-609 Code e0
Published 2007
Physical
Number of Pins 1152
Package / Case FBGA
Mount Surface Mount
