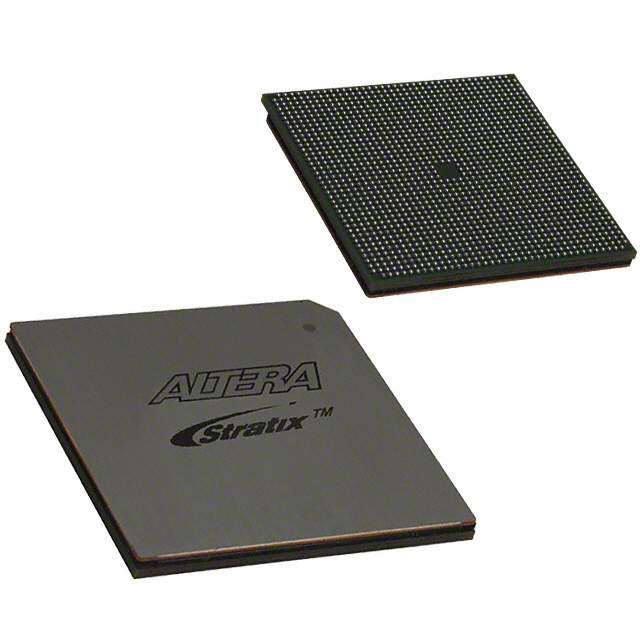

EP2SGX130GF40C5NES
RoHS
/
Package FBGA
Category Integrated Circuits (ICs) / Embedded - FPGAs (Field Programmable Gate Array)
Description
Lead Free CMOS COMMERCIAL EXTENDED 2007 FPGA 70C 823.7kB 609.76MHz 1.25V
PDF
/
Inventory: 3164
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Package / Case FBGA
Number of Pins 1508
Technical
Published 2007
JESD-609 Code e1
Pbfree Code yes
Number of Terminations 40
ECCN Code 3A001.A.7.A
Terminal Finish TIN SILVER COPPER
Max Operating Temperature 70°C
Min Operating Temperature 0°C
HTS Code 8542.39.00.01
Technology CMOS
Terminal Position BOTTOM
Terminal Form BALL
Peak Reflow Temperature (Cel) NOT SPECIFIED
Supply Voltage 1.2V
Frequency 609.76MHz
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Pin Count 40
JESD-30 Code S-PBGA-B40
Qualification Status Not Qualified
Operating Supply Voltage 1.2V
Temperature Grade COMMERCIAL EXTENDED
Max Supply Voltage 1.25V
Min Supply Voltage 1.15V
Number of I/O 734
RAM Size 823.7kB
Organization 7047 CLBS
Programmable Logic Type FIELD PROGRAMMABLE GATE ARRAY
Number of Logic Elements/Cells 132540
Number of Logic Blocks (LABs) 6627
Number of CLBs 7047
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
