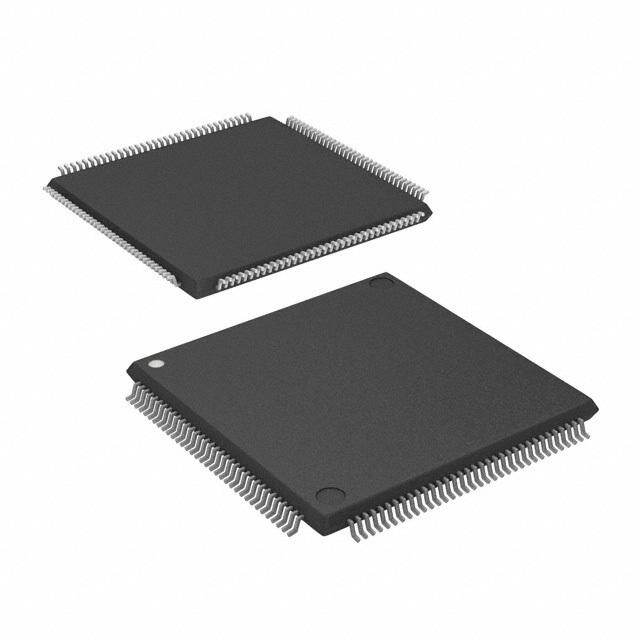

EP2C8T144C6
RoHS
/
Package TQFP
Category Integrated Circuits (ICs) / Embedded - FPGAs (Field Programmable Gate Array)
Description
Contains Lead CMOS OTHER 2006 FPGA 85C 20.3kB 500MHz 1.25V
PDF
/
Buying Options
Total Price: USD $22.09
Unit Price: USD $22.093364
≥1 USD $22.093364
≥10 USD $20.8428
≥100 USD $19.663022
≥500 USD $18.550014
≥1000 USD $17.500014
Inventory: 1614
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Mount Surface Mount
Package / Case TQFP
Number of Pins 144
Technical
Published 2006
JESD-609 Code e0
Pbfree Code no
Part Status Active
Moisture Sensitivity Level (MSL) 3
Number of Terminations 144
ECCN Code EAR99
Terminal Finish Tin/Lead (Sn/Pb)
Max Operating Temperature 85°C
Min Operating Temperature 0°C
Additional Feature ALSO REQUIRES 3.3 SUPPLY
Subcategory Field Programmable Gate Arrays
Technology CMOS
Terminal Position QUAD
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 220
Supply Voltage 1.2V
Terminal Pitch 0.5mm
Frequency 500MHz
Time@Peak Reflow Temperature-Max (s) 30
Pin Count 144
Number of Outputs 77
Qualification Status Not Qualified
Power Supplies 1.21.5/3.33.3V
Temperature Grade OTHER
Max Supply Voltage 1.25V
Min Supply Voltage 1.15V
Memory Size 20.3kB
Number of I/O 85
RAM Size 20.3kB
Frequency (Max) 260MHz
Programmable Logic Type FIELD PROGRAMMABLE GATE ARRAY
Number of Logic Elements/Cells 8256
Number of Gates 8000
Number of Logic Blocks (LABs) 516
Number of CLBs 516
Dimensions
Height Seated (Max) 1.6mm
Length 20mm
Width 20mm
Compliance
RoHS Status RoHS Compliant
Lead Free Contains Lead
