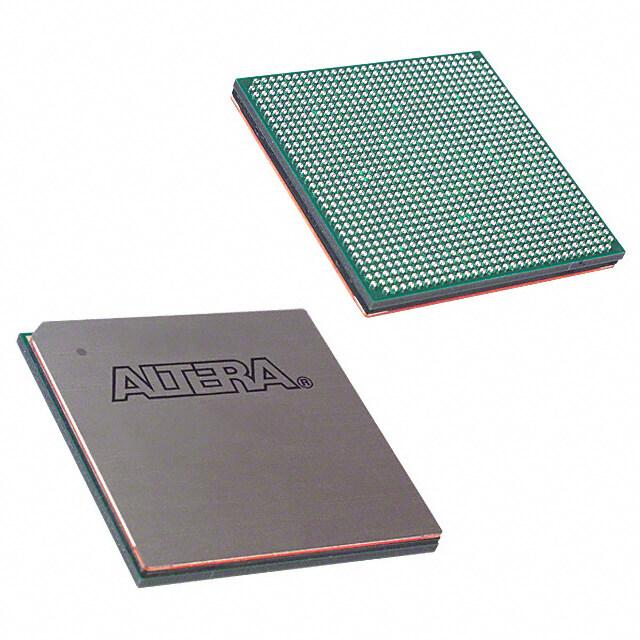

EP2A40F1020C8
RoHS
/
Package FBGA
Category Integrated Circuits (ICs) / Embedded - FPGAs (Field Programmable Gate Array)
Description
MACROCELL CMOS OTHER 1998 FPGA 85C 80kB 1.94ns 376MHz
PDF
/
Buying Options
Total Price: USD $1.56
Unit Price: USD $1.5561
≥1 USD $1.5561
≥10 USD $1.2768
≥100 USD $1.2369
≥500 USD $1.197
≥1000 USD $1.1571
Inventory: 1204
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Package / Case FBGA
Number of Pins 1020
Technical
Published 1998
JESD-609 Code e0
Pbfree Code no
Part Status Discontinued
Moisture Sensitivity Level (MSL) 3
ECCN Code 3A001.A.7.A
Terminal Finish Tin/Lead (Sn/Pb)
Max Operating Temperature 85°C
Min Operating Temperature 0°C
HTS Code 8542.39.00.01
Subcategory Field Programmable Gate Arrays
Technology CMOS
Terminal Position BOTTOM
Terminal Form BALL
Peak Reflow Temperature (Cel) 220
Supply Voltage 1.5V
Terminal Pitch 1mm
Frequency 376MHz
Time@Peak Reflow Temperature-Max (s) 30
Number of Outputs 723
Qualification Status Not Qualified
Operating Supply Voltage 1.5V
Power Supplies 1.51.5/3.3V
Temperature Grade OTHER
Max Supply Voltage 1.575V
Min Supply Voltage 1.425V
Memory Size 80kB
Number of I/O 735
RAM Size 80kB
Propagation Delay 1.94 ns
Programmable Logic Type LOADABLE PLD
Number of Logic Elements/Cells 38400
Number of Gates 3e+06
Number of Logic Blocks (LABs) 3840
Output Function MACROCELL
Dimensions
Height Seated (Max) 3.5mm
Length 33mm
Width 33mm
Compliance
RoHS Status RoHS Compliant
