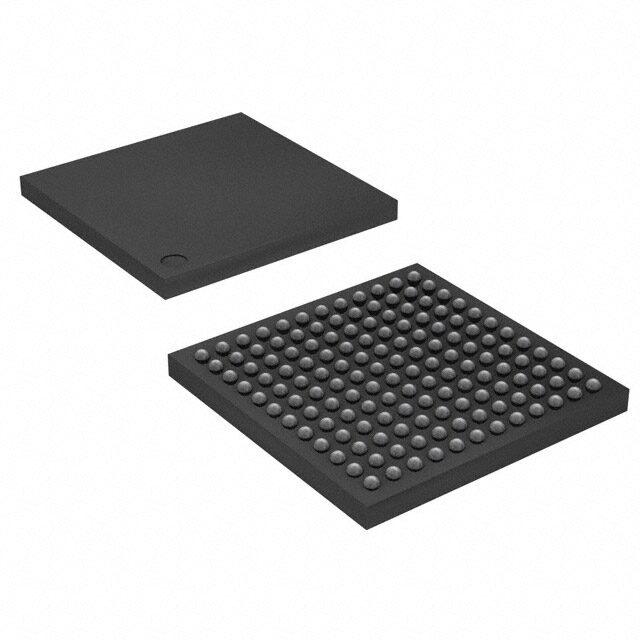

EP20K60EFC144-3
RoHS
/
Package FBGA
Category Integrated Circuits (ICs) / Embedded - FPGAs (Field Programmable Gate Array)
Description
Contains Lead MACROCELL CMOS OTHER FPGA 85C 4kB 3.56ns 182MHz
PDF
/
Inventory: 2019
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Package / Case FBGA
Number of Pins 144
Technical
Packaging Bulk
Published 2001
JESD-609 Code e0
Pbfree Code no
Moisture Sensitivity Level (MSL) 3
Number of Terminations 144
ECCN Code EAR99
Terminal Finish Tin/Lead (Sn63Pb37)
Max Operating Temperature 85°C
Min Operating Temperature 0°C
HTS Code 8542.39.00.01
Subcategory Field Programmable Gate Arrays
Technology CMOS
Terminal Position BOTTOM
Terminal Form BALL
Peak Reflow Temperature (Cel) 235
Supply Voltage 1.8V
Terminal Pitch 1mm
Reach Compliance Code not_compliant
Frequency 182MHz
Time@Peak Reflow Temperature-Max (s) 30
Pin Count 144
Number of Outputs 85
Qualification Status Not Qualified
Operating Supply Voltage 1.8V
Power Supplies 1.81.8/3.3V
Temperature Grade OTHER
Max Supply Voltage 1.89V
Min Supply Voltage 1.71V
Memory Size 4kB
Number of I/O 93
RAM Size 4kB
Propagation Delay 3.56 ns
Programmable Logic Type LOADABLE PLD
Number of Gates 162000
Number of Logic Blocks (LABs) 2560
Output Function MACROCELL
Number of Dedicated Inputs 4
Dimensions
Height Seated (Max) 1.7mm
Length 13mm
Width 13mm
Compliance
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
