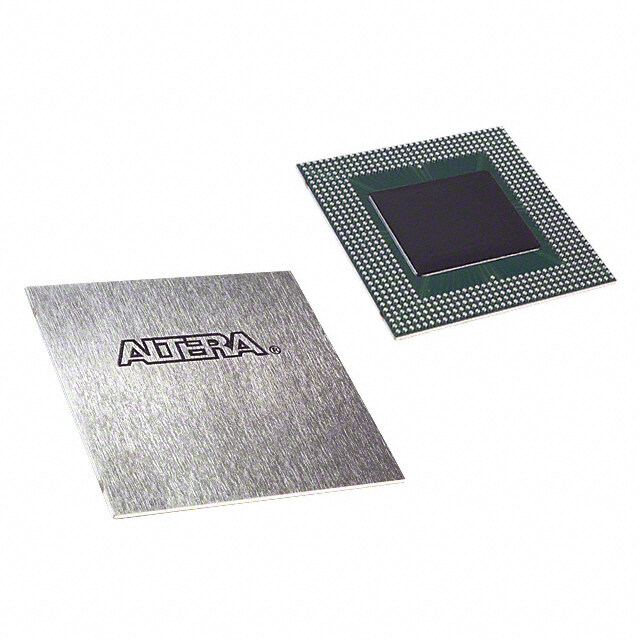

EP20K400EBC652-1N
RoHS
/
Package BGA
Category Integrated Circuits (ICs) / Embedded - FPGAs (Field Programmable Gate Array)
Description
MACROCELL CMOS OTHER 2001 FPGA 85C 26kB 1.57ns 368MHz
PDF
/
Inventory: 3942
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 45mm
Length 45mm
Height Seated (Max) 3.5mm
Technical
Number of Dedicated Inputs 4
Output Function MACROCELL
Number of Logic Blocks (LABs) 1664
Number of Gates 1.052e+06
Number of Logic Elements/Cells 16640
Programmable Logic Type LOADABLE PLD
Frequency (Max) 180MHz
Propagation Delay 1.57 ns
RAM Size 26kB
Number of I/O 488
Memory Size 26kB
Min Supply Voltage 1.71V
Max Supply Voltage 1.89V
Temperature Grade OTHER
Power Supplies 1.81.8/3.3V
Qualification Status Not Qualified
Number of Outputs 480
Pin Count 652
Time@Peak Reflow Temperature-Max (s) 40
Frequency 368MHz
Terminal Pitch 1.27mm
Supply Voltage 1.8V
Peak Reflow Temperature (Cel) 245
Terminal Form BALL
Terminal Position BOTTOM
Technology CMOS
Subcategory Field Programmable Gate Arrays
HTS Code 8542.39.00.01
Min Operating Temperature 0°C
Max Operating Temperature 85°C
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
ECCN Code 3A001.A.7.A
Number of Terminations 652
Moisture Sensitivity Level (MSL) 3
Part Status Active
Pbfree Code yes
JESD-609 Code e1
Published 2001
Physical
Number of Pins 652
Package / Case BGA
Mount Surface Mount
