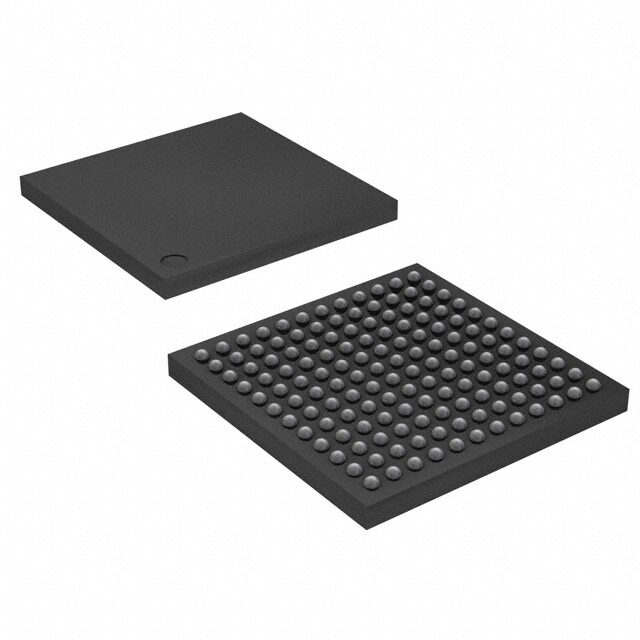

EP20K30EFC144-2
RoHS
/
Package FBGA
Category Integrated Circuits (ICs) / Embedded - FPGAs (Field Programmable Gate Array)
Description
MACROCELL CMOS OTHER 2001 FPGA 85C 3kB 2.69ns 641MHz
PDF
/
Buying Options
Total Price: USD $1.56
Unit Price: USD $1.5561
≥1 USD $1.5561
≥10 USD $1.2768
≥100 USD $1.2369
≥500 USD $1.197
≥1000 USD $1.1571
Inventory: 1584
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Package / Case FBGA
Number of Pins 144
Technical
Published 2001
JESD-609 Code e0
Pbfree Code no
Moisture Sensitivity Level (MSL) 3
Number of Terminations 144
ECCN Code EAR99
Terminal Finish Tin/Lead (Sn63Pb37)
Max Operating Temperature 85°C
Min Operating Temperature 0°C
HTS Code 8542.39.00.01
Subcategory Field Programmable Gate Arrays
Technology CMOS
Terminal Position BOTTOM
Terminal Form BALL
Peak Reflow Temperature (Cel) 235
Supply Voltage 1.8V
Terminal Pitch 1mm
Frequency 641MHz
Time@Peak Reflow Temperature-Max (s) 30
Pin Count 144
Number of Outputs 85
Qualification Status Not Qualified
Operating Supply Voltage 1.8V
Power Supplies 1.81.8/3.3V
Temperature Grade OTHER
Max Supply Voltage 1.89V
Min Supply Voltage 1.71V
Memory Size 3kB
Number of I/O 93
RAM Size 3kB
Propagation Delay 2.69 ns
Frequency (Max) 170MHz
Programmable Logic Type LOADABLE PLD
Number of Logic Elements/Cells 1200
Number of Gates 113000
Number of Logic Blocks (LABs) 120
Output Function MACROCELL
Number of Dedicated Inputs 4
Dimensions
Height Seated (Max) 1.7mm
Length 13mm
Width 13mm
Compliance
RoHS Status RoHS Compliant
