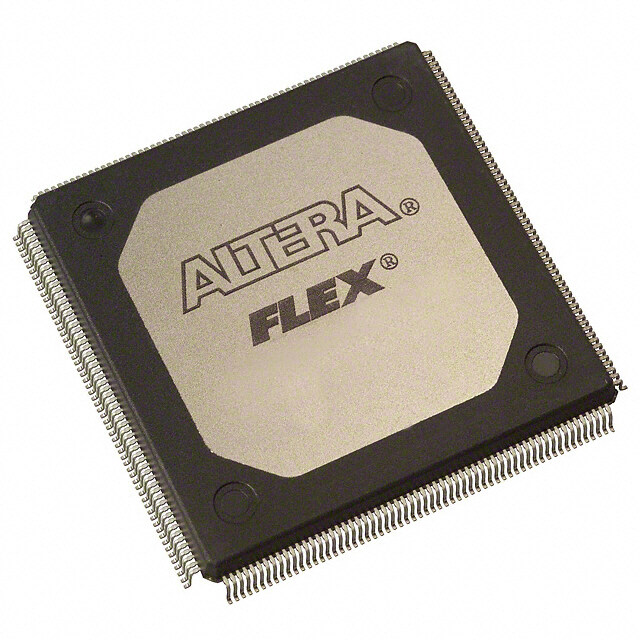

EP20K200RC240-3
RoHS
/
Package /
Category Integrated Circuits (ICs) / Embedded - FPGAs (Field Programmable Gate Array)
Description
MACROCELL CMOS OTHER 2001 FPGA 85C 13kB 3.6ns 2.375V
PDF
/
Inventory: 7261
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 32mm
Length 32mm
Height Seated (Max) 4.1mm
Technical
Number of Dedicated Inputs 4
Output Function MACROCELL
Number of Logic Blocks (LABs) 832
Number of Gates 526000
Number of Logic Elements/Cells 8320
Programmable Logic Type LOADABLE PLD
Number of Inputs 168
Propagation Delay 3.6 ns
RAM Size 13kB
Number of I/O 174
Supply Voltage-Min (Vsup) 2.375V
Temperature Grade OTHER
Power Supplies 2.52.5/3.3V
Supply Voltage-Max (Vsup) 2.625V
Qualification Status Not Qualified
Number of Outputs 168
JESD-30 Code S-PQFP-G240
Pin Count 240
Time@Peak Reflow Temperature-Max (s) 30
Terminal Pitch 0.5mm
Supply Voltage 2.5V
Peak Reflow Temperature (Cel) 220
Terminal Form GULL WING
Terminal Position QUAD
Technology CMOS
Subcategory Field Programmable Gate Arrays
HTS Code 8542.39.00.01
Min Operating Temperature 0°C
Max Operating Temperature 85°C
Terminal Finish Tin/Lead (Sn/Pb)
ECCN Code 3A001.A.7.A
Number of Terminations 240
Moisture Sensitivity Level (MSL) 3
Part Status Discontinued
Pbfree Code no
JESD-609 Code e0
Published 2001
Physical
Mount Surface Mount
