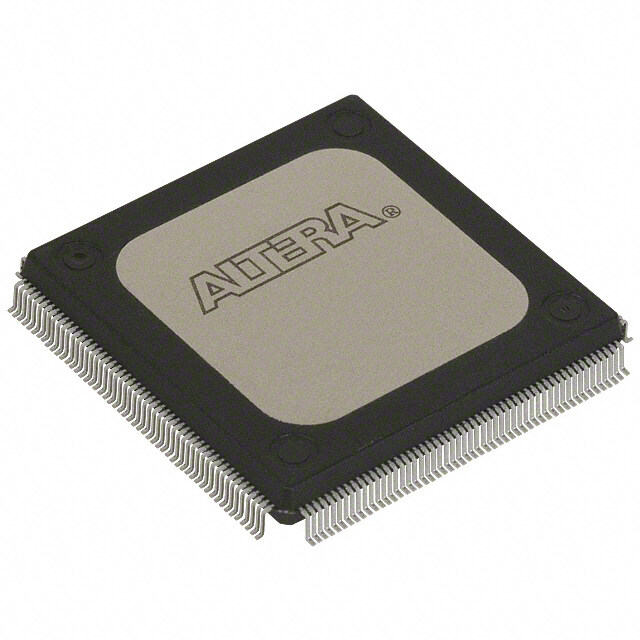

EP20K200RC208-3V
RoHS
/
Package /
Category Integrated Circuits (ICs) / Embedded - FPGAs (Field Programmable Gate Array)
Description
MACROCELL CMOS OTHER 2001 FPGA 85C 13kB 3.6ns 2.375V
PDF
/
Buying Options
Total Price: USD $55.93
Unit Price: USD $55.9328
≥1 USD $55.9328
Inventory: 115
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 28mm
Length 28mm
Height Seated (Max) 4.1mm
Technical
Number of Dedicated Inputs 4
Output Function MACROCELL
Number of Logic Blocks (LABs) 832
Number of Gates 526000
Number of Logic Elements/Cells 8320
Programmable Logic Type LOADABLE PLD
Number of Inputs 138
Propagation Delay 3.6 ns
RAM Size 13kB
Number of I/O 144
Supply Voltage-Min (Vsup) 2.375V
Temperature Grade OTHER
Power Supplies 2.52.5/3.3V
Supply Voltage-Max (Vsup) 2.625V
Qualification Status Not Qualified
Number of Outputs 138
JESD-30 Code S-PQFP-G208
Pin Count 208
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 0.5mm
Supply Voltage 2.5V
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form GULL WING
Terminal Position QUAD
Technology CMOS
Subcategory Field Programmable Gate Arrays
HTS Code 8542.39.00.01
Min Operating Temperature 0°C
Max Operating Temperature 85°C
Terminal Finish TIN LEAD
ECCN Code 3A991
Number of Terminations 208
Part Status Discontinued
JESD-609 Code e0
Published 2001
Physical
Mount Surface Mount
