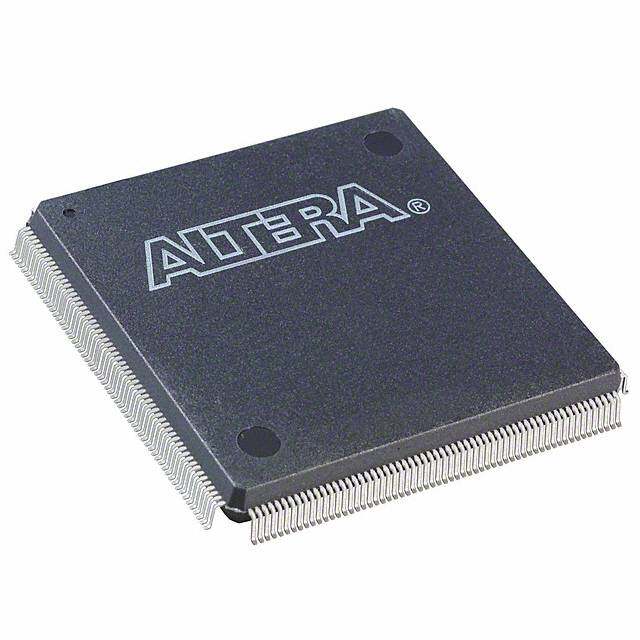

EP20K200EQI240-2N
RoHS
/
Package PQFP
Category Integrated Circuits (ICs) / Embedded - FPGAs (Field Programmable Gate Array)
Description
Lead Free MACROCELL CMOS 2001 FPGA 100C 10mA 13kB 1.97ns
PDF
/
Buying Options
Total Price: USD $297.06
Unit Price: USD $297.05835
≥1 USD $297.05835
≥10 USD $266.32775
Inventory: 503
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Package / Case PQFP
Number of Pins 240
Technical
Published 2001
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 3
Number of Terminations 240
ECCN Code 3A991
Terminal Finish Matte Tin (Sn) - annealed
Max Operating Temperature 100°C
Min Operating Temperature -40°C
HTS Code 8542.39.00.01
Subcategory Field Programmable Gate Arrays
Technology CMOS
Terminal Position QUAD
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 245
Supply Voltage 1.8V
Terminal Pitch 0.5mm
Frequency 205MHz
Time@Peak Reflow Temperature-Max (s) 40
Pin Count 240
Number of Outputs 160
Qualification Status Not Qualified
Power Supplies 1.81.8/3.3V
Max Supply Voltage 1.89V
Min Supply Voltage 1.71V
Memory Size 13kB
Operating Supply Current 10mA
Number of I/O 168
RAM Size 13kB
Propagation Delay 1.97 ns
Frequency (Max) 170MHz
Programmable Logic Type LOADABLE PLD
Number of Logic Elements/Cells 8320
Number of Gates 404000
Number of Logic Blocks (LABs) 832
Output Function MACROCELL
Number of Dedicated Inputs 4
Dimensions
Height Seated (Max) 4.1mm
Length 32mm
Width 32mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
