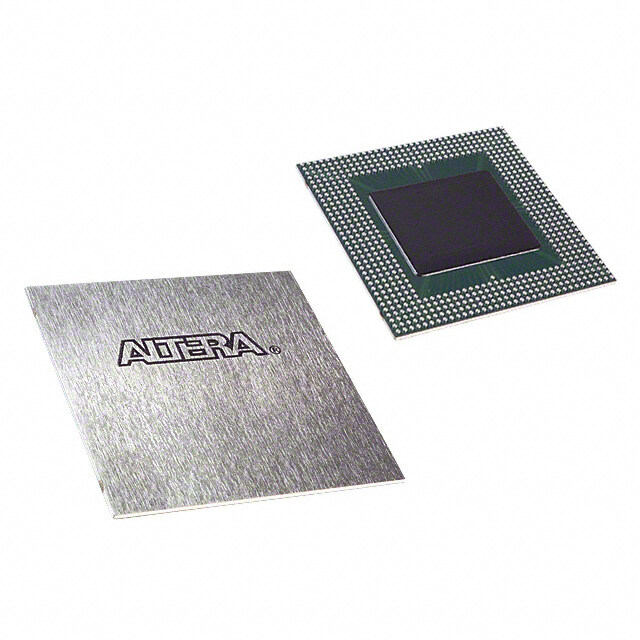

EP20K200EBC652-2
RoHS
/
Package BGA
Category Integrated Circuits (ICs) / Embedded - FPGAs (Field Programmable Gate Array)
Description
MACROCELL CMOS OTHER 2001 FPGA 85C 13kB 1.97ns 170MHz
PDF
/
Buying Options
Total Price: USD $138.25
Unit Price: USD $138.24685
≥1 USD $138.24685
≥10 USD $133.6384
≥100 USD $119.814
Inventory: 786
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 45mm
Length 45mm
Height Seated (Max) 3.5mm
Technical
Number of Dedicated Inputs 4
Output Function MACROCELL
Number of Logic Blocks (LABs) 832
Number of Gates 526000
Number of Logic Elements/Cells 8320
Programmable Logic Type LOADABLE PLD
Frequency (Max) 170MHz
Propagation Delay 1.97 ns
RAM Size 13kB
Number of I/O 376
Memory Size 13kB
Temperature Grade OTHER
Power Supplies 1.81.8/3.3V
Supply Voltage-Max (Vsup) 1.89V
Operating Supply Voltage 2.5V
Qualification Status Not Qualified
Number of Outputs 368
Pin Count 652
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 1.27mm
Supply Voltage 1.8V
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form BALL
Terminal Position BOTTOM
Technology CMOS
Subcategory Field Programmable Gate Arrays
HTS Code 8542.39.00.01
Min Operating Temperature 0°C
Max Operating Temperature 85°C
Terminal Finish TIN LEAD
ECCN Code 3A001.A.7.A
Number of Terminations 652
Moisture Sensitivity Level (MSL) 3
Part Status Discontinued
JESD-609 Code e0
Published 2001
Physical
Number of Pins 652
Package / Case BGA
Mount Surface Mount
