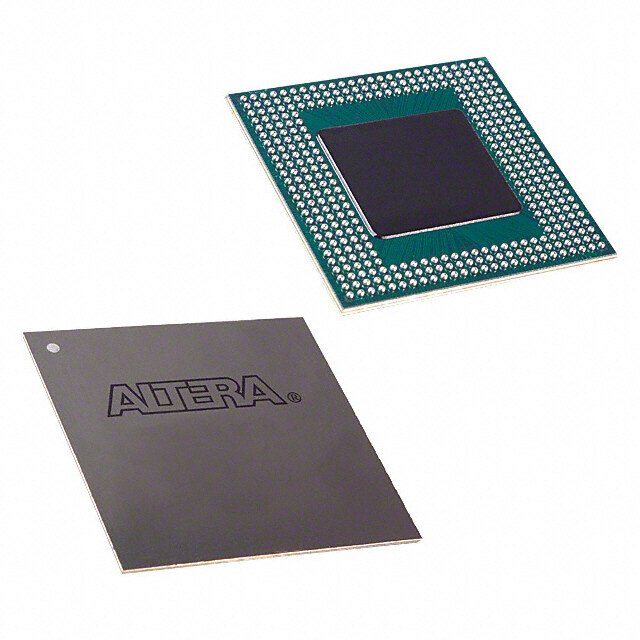

EP20K200CB356C8
RoHS
/
Package /
Category Integrated Circuits (ICs) / Embedded - FPGAs (Field Programmable Gate Array)
Description
MACROCELL CMOS OTHER 2001 FPGA 85C 13kB 1.78ns 1.71V
PDF
/
Inventory: 7382
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Number of Pins 356
Technical
Published 2001
JESD-609 Code e0
Part Status Discontinued
Number of Terminations 356
ECCN Code 3A991
Terminal Finish Tin/Lead (Sn/Pb)
Max Operating Temperature 85°C
Min Operating Temperature 0°C
HTS Code 8542.39.00.01
Subcategory Field Programmable Gate Arrays
Technology CMOS
Terminal Position BOTTOM
Terminal Form BALL
Peak Reflow Temperature (Cel) NOT SPECIFIED
Supply Voltage 1.8V
Terminal Pitch 1.27mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Pin Count 356
Number of Outputs 263
Qualification Status Not Qualified
Supply Voltage-Max (Vsup) 1.89V
Power Supplies 1.81.8/3.3V
Temperature Grade OTHER
Supply Voltage-Min (Vsup) 1.71V
Number of I/O 271
RAM Size 13kB
Propagation Delay 1.78 ns
Programmable Logic Type LOADABLE PLD
Number of Logic Elements/Cells 8320
Number of Gates 526000
Number of Logic Blocks (LABs) 832
Output Function MACROCELL
Number of Dedicated Inputs 4
Dimensions
Height Seated (Max) 1.7mm
Length 35mm
Width 35mm
Compliance
RoHS Status RoHS Compliant
