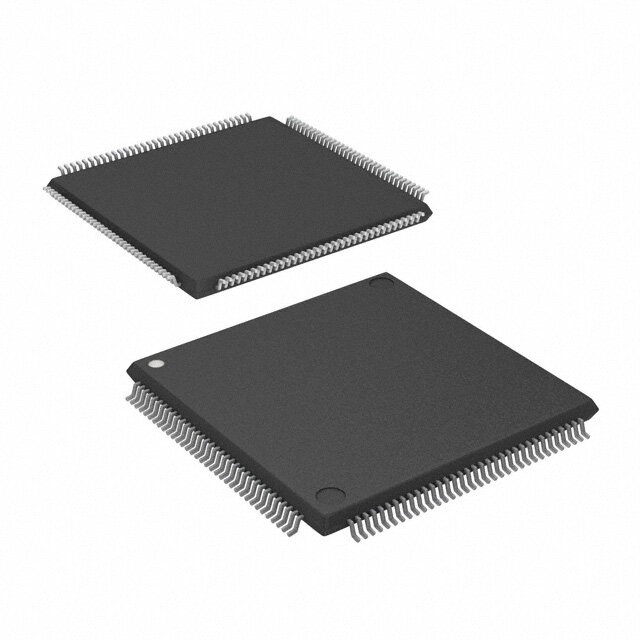

EP20K160ETC144-3
RoHS
/
Package TQFP
Category Integrated Circuits (ICs) / Embedded - FPGAs (Field Programmable Gate Array)
Description
MACROCELL CMOS OTHER 2001 FPGA 85C 10kB 2.29ns 323MHz
PDF
/
Buying Options
Total Price: USD $95.28
Unit Price: USD $95.27645
≥1 USD $95.27645
≥10 USD $92.20225
≥100 USD $89.129
≥500 USD $79.90925
Inventory: 1180
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 20mm
Length 20mm
Height Seated (Max) 1.6mm
Technical
Number of Dedicated Inputs 4
Output Function MACROCELL
Number of Logic Blocks (LABs) 640
Number of Gates 404000
Number of Logic Elements/Cells 6400
Programmable Logic Type LOADABLE PLD
Propagation Delay 2.29 ns
RAM Size 10kB
Number of I/O 88
Memory Size 10kB
Min Supply Voltage 1.71V
Max Supply Voltage 1.89V
Temperature Grade OTHER
Power Supplies 1.81.8/3.3V
Operating Supply Voltage 1.8V
Qualification Status Not Qualified
Number of Outputs 80
Pin Count 144
Time@Peak Reflow Temperature-Max (s) 30
Frequency 323MHz
Terminal Pitch 0.5mm
Supply Voltage 1.8V
Peak Reflow Temperature (Cel) 220
Terminal Form GULL WING
Terminal Position QUAD
Technology CMOS
Subcategory Field Programmable Gate Arrays
HTS Code 8542.39.00.01
Min Operating Temperature 0°C
Max Operating Temperature 85°C
Terminal Finish Tin/Lead (Sn/Pb)
ECCN Code 3A991
Number of Terminations 144
Moisture Sensitivity Level (MSL) 3
Part Status Active
Pbfree Code no
JESD-609 Code e0
Published 2001
Physical
Number of Pins 144
Package / Case TQFP
Mount Surface Mount
