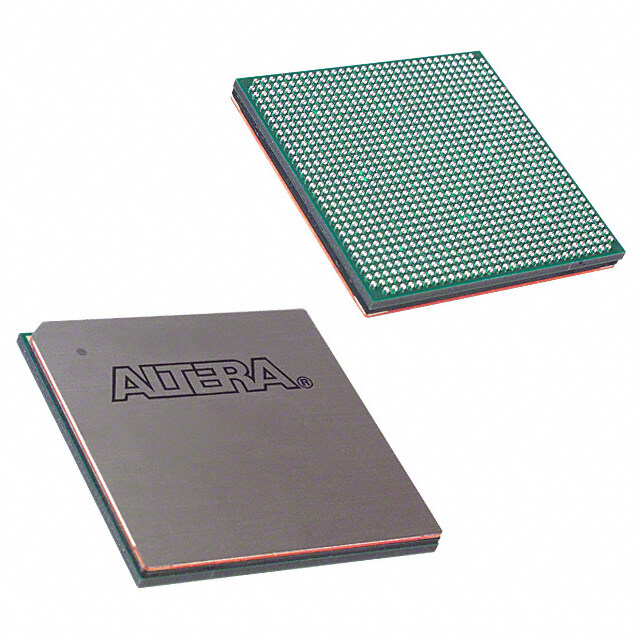

EP20K1500EFC33-3
RoHS
/
Package FBGA
Category Integrated Circuits (ICs) / Embedded - FPGAs (Field Programmable Gate Array)
Description
MACROCELL CMOS OTHER 2001 FPGA 85C 54kB 2.32ns 299MHz
PDF
/
Inventory: 10039
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 33mm
Length 33mm
Height Seated (Max) 3.5mm
Technical
Number of Dedicated Inputs 4
Output Function MACROCELL
Number of Logic Blocks (LABs) 5184
Number of Gates 2.392e+06
Number of Logic Elements/Cells 51840
Programmable Logic Type LOADABLE PLD
Propagation Delay 2.32 ns
RAM Size 54kB
Number of I/O 808
Memory Size 54kB
Min Supply Voltage 1.71V
Max Supply Voltage 1.89V
Temperature Grade OTHER
Power Supplies 1.81.8/3.3V
Operating Supply Voltage 1.8V
Qualification Status Not Qualified
Number of Outputs 800
Time@Peak Reflow Temperature-Max (s) 30
Frequency 299MHz
Terminal Pitch 1mm
Supply Voltage 1.8V
Peak Reflow Temperature (Cel) 220
Terminal Form BALL
Terminal Position BOTTOM
Technology CMOS
Subcategory Field Programmable Gate Arrays
HTS Code 8542.39.00.01
Min Operating Temperature 0°C
Max Operating Temperature 85°C
Terminal Finish Tin/Lead (Sn63Pb37)
ECCN Code 3A001.A.7.A
Moisture Sensitivity Level (MSL) 5A
Pbfree Code no
JESD-609 Code e0
Published 2001
Physical
Number of Pins 1020
Package / Case FBGA
Mount Surface Mount
