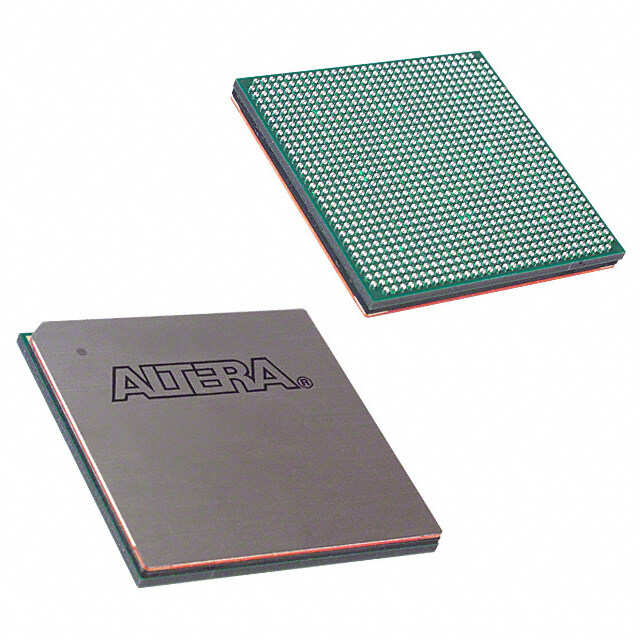

EP20K1500EFC33-1X
RoHS
/
Package FBGA
Category Integrated Circuits (ICs) / Embedded - FPGAs (Field Programmable Gate Array)
Description
MACROCELL CMOS OTHER 2001 FPGA 85C 54kB 1.84ns 400MHz
PDF
/
Buying Options
Total Price: USD $515.11
Unit Price: USD $515.10615
≥1 USD $515.10615
Inventory: 309
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Package / Case FBGA
Number of Pins 1020
Technical
Published 2001
JESD-609 Code e0
Pbfree Code no
Moisture Sensitivity Level (MSL) 5A
ECCN Code 3A001.A.7.A
Terminal Finish Tin/Lead (Sn63Pb37)
Max Operating Temperature 85°C
Min Operating Temperature 0°C
HTS Code 8542.39.00.01
Subcategory Field Programmable Gate Arrays
Technology CMOS
Terminal Position BOTTOM
Terminal Form BALL
Peak Reflow Temperature (Cel) 220
Supply Voltage 1.8V
Terminal Pitch 1mm
Frequency 400MHz
Time@Peak Reflow Temperature-Max (s) 30
Number of Outputs 800
Qualification Status Not Qualified
Operating Supply Voltage 1.8V
Power Supplies 1.81.8/3.3V
Temperature Grade OTHER
Max Supply Voltage 1.89V
Min Supply Voltage 1.71V
Memory Size 54kB
Number of I/O 808
RAM Size 54kB
Propagation Delay 1.84 ns
Frequency (Max) 180MHz
Programmable Logic Type LOADABLE PLD
Number of Logic Elements/Cells 51840
Number of Gates 2.392e+06
Number of Logic Blocks (LABs) 5184
Output Function MACROCELL
Number of Dedicated Inputs 4
Dimensions
Height Seated (Max) 3.5mm
Length 33mm
Width 33mm
Compliance
RoHS Status RoHS Compliant
