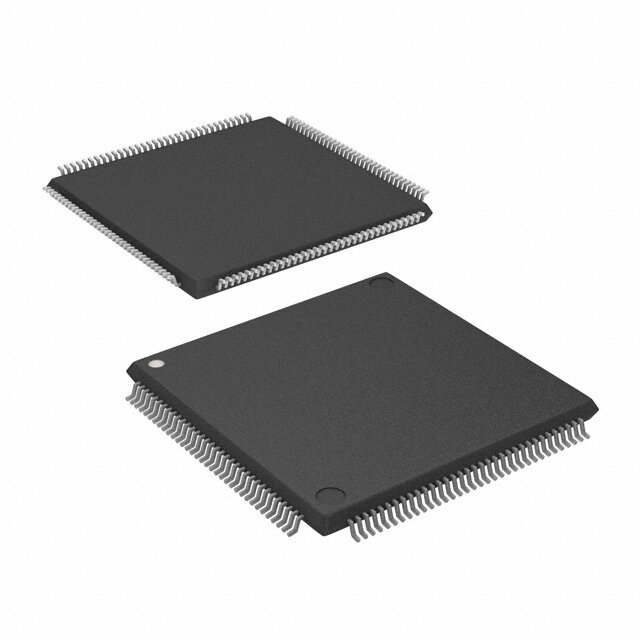

EP20K100TC144-1
RoHS
/
Package TQFP
Category Integrated Circuits (ICs) / Embedded - FPGAs (Field Programmable Gate Array)
Description
MACROCELL CMOS OTHER 2001 FPGA 85C 6.5kB 2.5ns 250MHz
PDF
/
Buying Options
Total Price: USD $5.36
Unit Price: USD $5.36465
≥1 USD $5.36465
≥10 USD $4.40135
≥100 USD $4.26455
≥500 USD $4.1268
≥1000 USD $3.98905
Inventory: 1305
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Package / Case TQFP
Number of Pins 144
Technical
Published 2001
JESD-609 Code e0
Pbfree Code no
Part Status Active
Moisture Sensitivity Level (MSL) 3
Number of Terminations 144
Terminal Finish Tin/Lead (Sn/Pb)
Max Operating Temperature 85°C
Min Operating Temperature 0°C
HTS Code 8542.39.00.01
Subcategory Field Programmable Gate Arrays
Technology CMOS
Terminal Position QUAD
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 220
Supply Voltage 2.5V
Terminal Pitch 0.5mm
Frequency 250MHz
Time@Peak Reflow Temperature-Max (s) 30
Pin Count 144
Number of Outputs 95
Qualification Status Not Qualified
Operating Supply Voltage 2.5V
Power Supplies 2.52.5/3.3V
Temperature Grade OTHER
Max Supply Voltage 2.625V
Min Supply Voltage 2.375V
Memory Size 6.5kB
Number of I/O 101
RAM Size 6.5kB
Propagation Delay 2.5 ns
Frequency (Max) 180MHz
Programmable Logic Type LOADABLE PLD
Number of Logic Elements/Cells 4160
Number of Gates 263000
Number of Logic Blocks (LABs) 416
Output Function MACROCELL
Number of Dedicated Inputs 4
Dimensions
Height Seated (Max) 1.6mm
Length 20mm
Width 20mm
Compliance
RoHS Status RoHS Compliant
