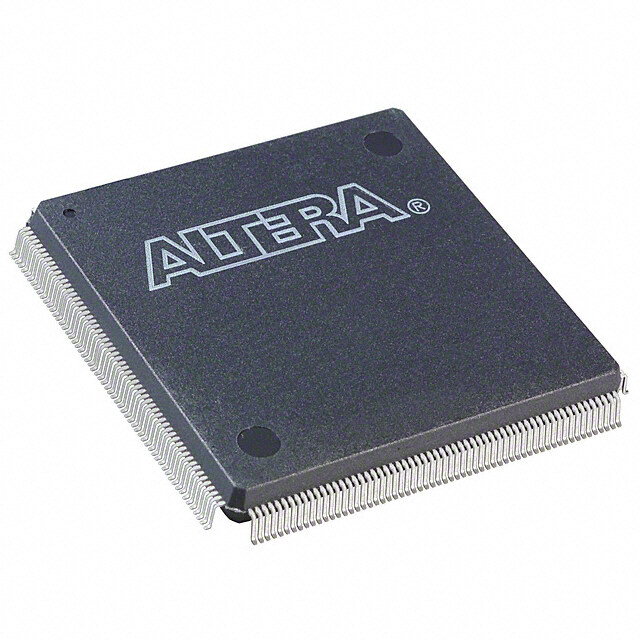

EP20K100QI240-2
RoHS
/
Package PQFP
Category Integrated Circuits (ICs) / Embedded - FPGAs (Field Programmable Gate Array)
Description
MACROCELL CMOS 2001 RoHS Compliant FPGA 100C 6.5kB 3ns 200MHz
PDF
/
Inventory: 1932
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Package / Case PQFP
Number of Pins 240
Technical
Published 2001
JESD-609 Code e0
Pbfree Code no
Moisture Sensitivity Level (MSL) 3
Number of Terminations 240
Terminal Finish Tin/Lead (Sn/Pb)
Max Operating Temperature 100°C
Min Operating Temperature -40°C
HTS Code 8542.39.00.01
Subcategory Field Programmable Gate Arrays
Technology CMOS
Terminal Position QUAD
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 220
Supply Voltage 2.5V
Terminal Pitch 0.5mm
Frequency 200MHz
Time@Peak Reflow Temperature-Max (s) 30
Pin Count 240
Number of Outputs 183
Qualification Status Not Qualified
Operating Supply Voltage 2.5V
Power Supplies 2.52.5/3.3V
Max Supply Voltage 2.625V
Min Supply Voltage 2.375V
Memory Size 6.5kB
Number of I/O 189
RAM Size 6.5kB
Propagation Delay 3 ns
Frequency (Max) 170MHz
Programmable Logic Type LOADABLE PLD
Number of Logic Elements/Cells 4160
Number of Gates 263000
Number of Logic Blocks (LABs) 416
Output Function MACROCELL
Number of Dedicated Inputs 4
Dimensions
Height Seated (Max) 4.1mm
Length 32mm
Width 32mm
Compliance
RoHS Status RoHS Compliant
