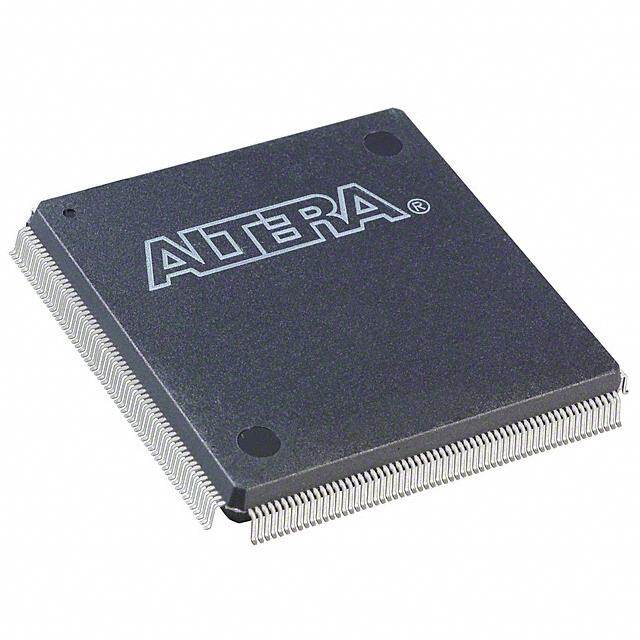

EP20K100QC240-3V
RoHS
/
Package PQFP
Category Integrated Circuits (ICs) / Embedded - FPGAs (Field Programmable Gate Array)
Description
Contains Lead MACROCELL CMOS OTHER FPGA 85C 6.5kB 3.6ns 2.375V
PDF
/
Buying Options
Total Price: USD $200.33
Unit Price: USD $200.332236
≥1 USD $200.332236
≥10 USD $193.744918
≥25 USD $192.398136
≥50 USD $191.060707
≥100 USD $187.130955
≥500 USD $173.752054
Inventory: 3514
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
Dimensions
Width 32mm
Length 32mm
Height Seated (Max) 4.1mm
Technical
Number of Dedicated Inputs 4
Output Function MACROCELL
Number of Logic Blocks (LABs) 416
Number of Gates 263000
Number of Logic Elements/Cells 4160
Programmable Logic Type LOADABLE PLD
Propagation Delay 3.6 ns
RAM Size 6.5kB
Number of I/O 189
Supply Voltage-Min (Vsup) 2.375V
Temperature Grade OTHER
Power Supplies 2.52.5/3.3V
Supply Voltage-Max (Vsup) 2.625V
Qualification Status Not Qualified
Number of Outputs 183
Pin Count 240
Time@Peak Reflow Temperature-Max (s) 30
Terminal Pitch 0.5mm
Supply Voltage 2.5V
Peak Reflow Temperature (Cel) 220
Terminal Form GULL WING
Terminal Position QUAD
Technology CMOS
Subcategory Field Programmable Gate Arrays
HTS Code 8542.39.00.01
Min Operating Temperature 0°C
Max Operating Temperature 85°C
Terminal Finish TIN LEAD
ECCN Code 3A991
Number of Terminations 240
Moisture Sensitivity Level (MSL) 3
Part Status Discontinued
Pbfree Code no
JESD-609 Code e0
Published 2001
Packaging Bulk
Physical
Number of Pins 240
Package / Case PQFP
Mount Surface Mount
