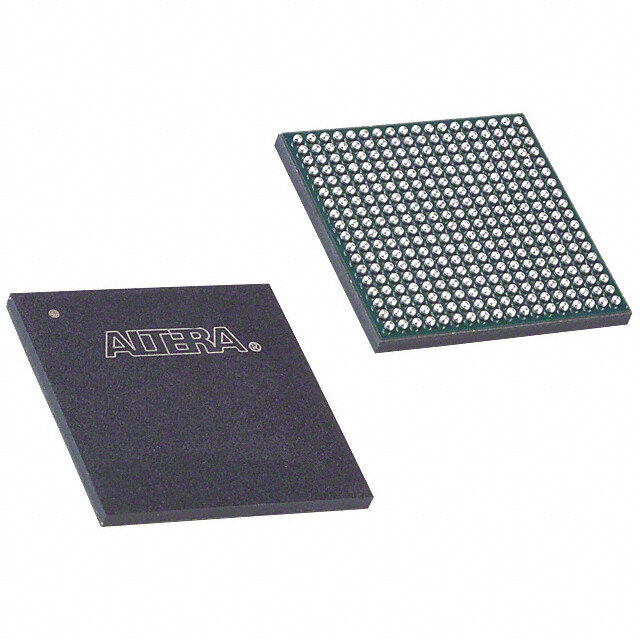

EP20K100FC324-1V
RoHS
/
Package FBGA
Category Integrated Circuits (ICs) / Embedded - FPGAs (Field Programmable Gate Array)
Description
Contains Lead MACROCELL CMOS OTHER FPGA 85C 6.5kB 2.5ns 250MHz
PDF
/
Buying Options
Total Price: USD $87.15
Unit Price: USD $87.1454
≥1 USD $87.1454
≥10 USD $84.33435
≥100 USD $81.5233
≥500 USD $73.09015
Inventory: 1705
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status RoHS Compliant
Dimensions
Width 19mm
Length 19mm
Height Seated (Max) 3.5mm
Technical
Number of Dedicated Inputs 4
Output Function MACROCELL
Number of Logic Blocks (LABs) 416
Number of Gates 263000
Number of Logic Elements/Cells 4160
Programmable Logic Type LOADABLE PLD
Propagation Delay 2.5 ns
RAM Size 6.5kB
Number of I/O 252
Min Supply Voltage 2.375V
Max Supply Voltage 2.625V
Temperature Grade OTHER
Power Supplies 2.52.5/3.3V
Operating Supply Voltage 2.5V
Qualification Status Not Qualified
Number of Outputs 246
Pin Count 324
Frequency 250MHz
Terminal Pitch 1mm
Supply Voltage 2.5V
Terminal Form BALL
Terminal Position BOTTOM
Technology CMOS
Subcategory Field Programmable Gate Arrays
HTS Code 8542.39.00.01
Min Operating Temperature 0°C
Max Operating Temperature 85°C
Terminal Finish TIN SILVER COPPER
ECCN Code 3A991
Number of Terminations 324
Moisture Sensitivity Level (MSL) 3
Part Status Discontinued
JESD-609 Code e1
Published 2001
Packaging Bulk
Physical
Number of Pins 324
Package / Case FBGA
Mount Surface Mount
