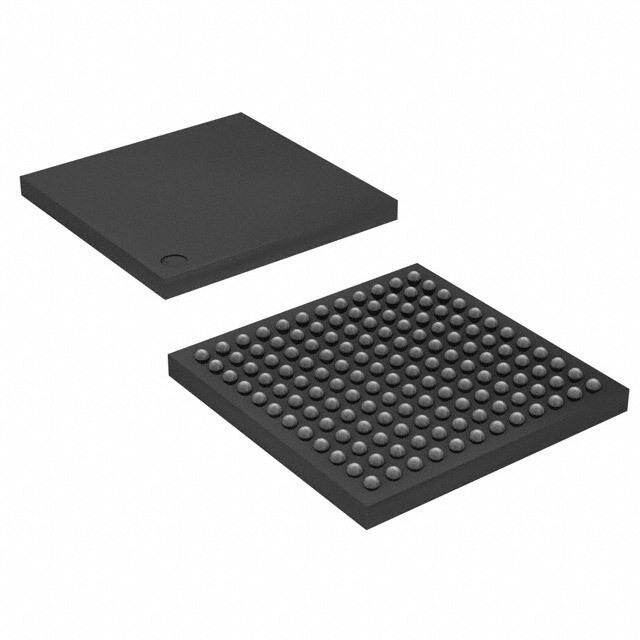

EP20K100EFI144-2X
RoHS
/
Package FBGA
Category Integrated Circuits (ICs) / Embedded - FPGAs (Field Programmable Gate Array)
Description
Contains Lead MACROCELL CMOS 2001 FPGA 100C 6.5kB 2.02ns 250MHz
PDF
/
Inventory: 1765
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status RoHS Compliant
Dimensions
Width 13mm
Length 13mm
Height Seated (Max) 1.7mm
Technical
Number of Dedicated Inputs 4
Output Function MACROCELL
Number of Logic Blocks (LABs) 416
Number of Gates 263000
Number of Logic Elements/Cells 4160
Programmable Logic Type LOADABLE PLD
Frequency (Max) 170MHz
Propagation Delay 2.02 ns
RAM Size 6.5kB
Number of I/O 93
Memory Size 6.5kB
Min Supply Voltage 1.71V
Max Supply Voltage 1.89V
Power Supplies 1.81.8/3.3V
Qualification Status Not Qualified
Number of Outputs 85
Pin Count 144
Time@Peak Reflow Temperature-Max (s) 30
Frequency 250MHz
Terminal Pitch 1mm
Supply Voltage 1.8V
Peak Reflow Temperature (Cel) 235
Terminal Form BALL
Terminal Position BOTTOM
Technology CMOS
Subcategory Field Programmable Gate Arrays
HTS Code 8542.39.00.01
Min Operating Temperature -40°C
Max Operating Temperature 100°C
Terminal Finish Tin/Lead (Sn63Pb37)
ECCN Code 3A991
Number of Terminations 144
Moisture Sensitivity Level (MSL) 3
Pbfree Code no
JESD-609 Code e0
Published 2001
Packaging Bulk
Physical
Number of Pins 144
Package / Case FBGA
Mount Surface Mount
