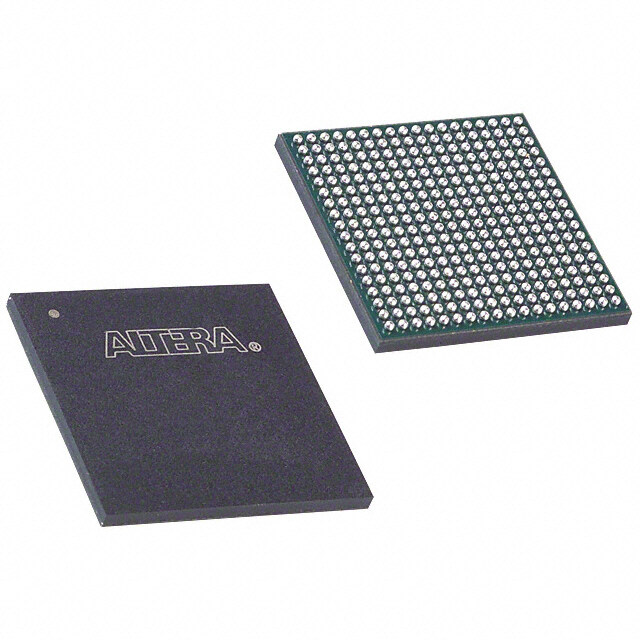

EP20K100EFC324-1N
RoHS
/
Package FBGA
Category Integrated Circuits (ICs) / Embedded - FPGAs (Field Programmable Gate Array)
Description
MACROCELL CMOS OTHER 2001 FPGA 85C 6.5kB 1.73ns 250MHz
PDF
/
Buying Options
Total Price: USD $1.66
Unit Price: USD $1.65965
≥1 USD $1.65965
≥10 USD $1.36135
≥100 USD $1.31955
≥500 USD $1.2768
≥1000 USD $1.23405
Inventory: 60
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Package / Case FBGA
Number of Pins 324
Technical
Published 2001
JESD-609 Code e1
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 3
Number of Terminations 324
ECCN Code 3A991
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Max Operating Temperature 85°C
Min Operating Temperature 0°C
HTS Code 8542.39.00.01
Subcategory Field Programmable Gate Arrays
Technology CMOS
Terminal Position BOTTOM
Terminal Form BALL
Peak Reflow Temperature (Cel) 260
Supply Voltage 1.8V
Terminal Pitch 1mm
Frequency 250MHz
Time@Peak Reflow Temperature-Max (s) 40
Pin Count 324
Number of Outputs 238
Qualification Status Not Qualified
Power Supplies 1.81.8/3.3V
Temperature Grade OTHER
Max Supply Voltage 1.89V
Min Supply Voltage 1.71V
Memory Size 6.5kB
Number of I/O 246
RAM Size 6.5kB
Propagation Delay 1.73 ns
Frequency (Max) 180MHz
Programmable Logic Type LOADABLE PLD
Number of Logic Elements/Cells 4160
Number of Gates 263000
Number of Logic Blocks (LABs) 416
Output Function MACROCELL
Number of Dedicated Inputs 4
Dimensions
Height Seated (Max) 3.5mm
Length 19mm
Width 19mm
Compliance
RoHS Status RoHS Compliant
