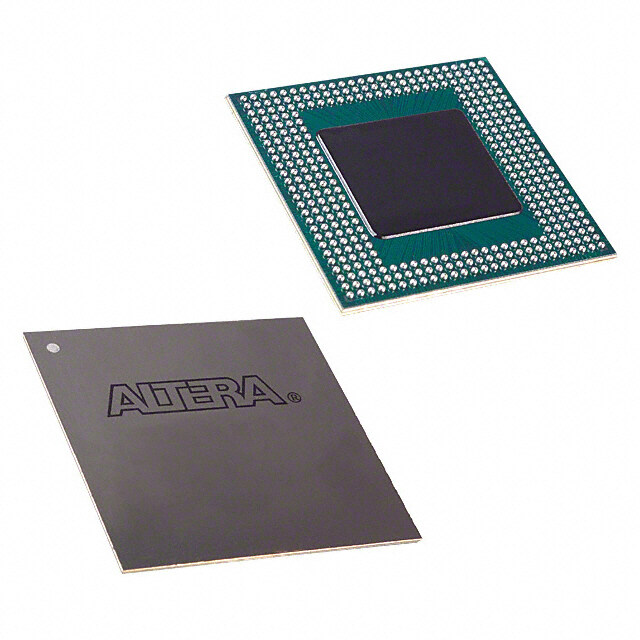

EP20K100BC356-2
RoHS
/
Package BGA
Category Integrated Circuits (ICs) / Embedded - FPGAs (Field Programmable Gate Array)
Description
MACROCELL CMOS OTHER 2001 FPGA 85C 6.5kB 3ns 200MHz
PDF
/
Buying Options
Total Price: USD $73.79
Unit Price: USD $73.79125
≥1 USD $73.79125
≥10 USD $71.48465
≥100 USD $69.179
≥500 USD $66.87335
≥1000 USD $59.95545
Inventory: 2107
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 35mm
Length 35mm
Height Seated (Max) 1.63mm
Technical
Number of Dedicated Inputs 4
Output Function MACROCELL
Number of Logic Blocks (LABs) 416
Number of Gates 263000
Number of Logic Elements/Cells 4160
Programmable Logic Type LOADABLE PLD
Frequency (Max) 170MHz
Propagation Delay 3 ns
RAM Size 6.5kB
Number of I/O 252
Memory Size 6.5kB
Min Supply Voltage 2.375V
Max Supply Voltage 2.625V
Temperature Grade OTHER
Power Supplies 2.52.5/3.3V
Operating Supply Voltage 2.5V
Qualification Status Not Qualified
Number of Outputs 246
Pin Count 356
Time@Peak Reflow Temperature-Max (s) 30
Frequency 200MHz
Terminal Pitch 1.27mm
Supply Voltage 2.5V
Peak Reflow Temperature (Cel) 220
Terminal Form BALL
Terminal Position BOTTOM
Technology CMOS
Subcategory Field Programmable Gate Arrays
HTS Code 8542.39.00.01
Min Operating Temperature 0°C
Max Operating Temperature 85°C
Terminal Finish Tin/Lead (Sn63Pb37)
Number of Terminations 356
Moisture Sensitivity Level (MSL) 3
Pbfree Code no
JESD-609 Code e0
Published 2001
Physical
Number of Pins 356
Package / Case BGA
Mount Surface Mount
