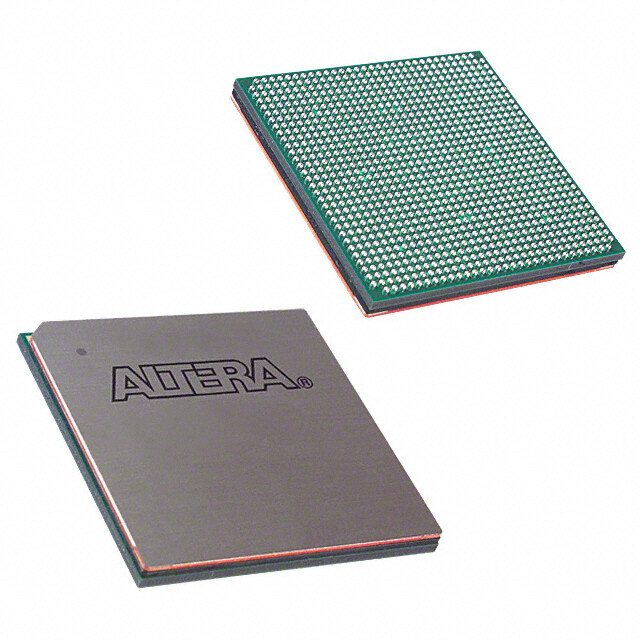

EP20K1000EFC33-1X
RoHS
/
Package FBGA
Category Integrated Circuits (ICs) / Embedded - FPGAs (Field Programmable Gate Array)
Description
MACROCELL CMOS OTHER 2001 FPGA 85C 40kB 1.84ns 400MHz
PDF
/
Buying Options
Total Price: USD $73.79
Unit Price: USD $73.79125
≥1 USD $73.79125
≥10 USD $71.48465
≥100 USD $69.179
≥500 USD $66.87335
≥1000 USD $59.95545
Inventory: 1402
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Package / Case FBGA
Number of Pins 1020
Technical
Published 2001
JESD-609 Code e0
Pbfree Code no
Moisture Sensitivity Level (MSL) 3
ECCN Code 3A001.A.7.A
Terminal Finish Tin/Lead (Sn63Pb37)
Max Operating Temperature 85°C
Min Operating Temperature 0°C
HTS Code 8542.39.00.01
Subcategory Field Programmable Gate Arrays
Technology CMOS
Terminal Position BOTTOM
Terminal Form BALL
Peak Reflow Temperature (Cel) 220
Supply Voltage 1.8V
Terminal Pitch 1mm
Frequency 400MHz
Time@Peak Reflow Temperature-Max (s) 30
Number of Outputs 700
Qualification Status Not Qualified
Operating Supply Voltage 1.8V
Power Supplies 1.81.8/3.3V
Temperature Grade OTHER
Max Supply Voltage 1.89V
Min Supply Voltage 1.71V
Memory Size 40kB
Number of I/O 708
RAM Size 40kB
Propagation Delay 1.84 ns
Frequency (Max) 180MHz
Programmable Logic Type LOADABLE PLD
Number of Logic Elements/Cells 38400
Number of Gates 1.772e+06
Number of Logic Blocks (LABs) 3840
Output Function MACROCELL
Number of Dedicated Inputs 4
Dimensions
Height Seated (Max) 3.5mm
Length 33mm
Width 33mm
Compliance
RoHS Status RoHS Compliant
