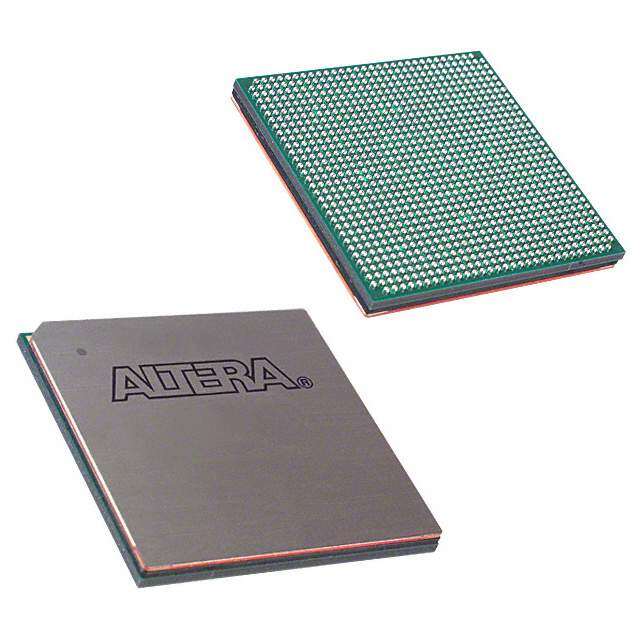

EP1SGX25FF1020C6N
RoHS
/
Package FBGA
Category Integrated Circuits (ICs) / Embedded - FPGAs (Field Programmable Gate Array)
Description
Lead Free CMOS OTHER 2006 FPGA 85C 237.4kB 5GHz 1.575V
PDF
/
Buying Options
Total Price: USD $1062.72
Unit Price: USD $1062.7232
≥1 USD $1062.7232
Inventory: 746
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Width 33mm
Length 33mm
Height Seated (Max) 3.5mm
Technical
Number of CLBs 2852
Number of Transceivers 16
Number of Logic Blocks (LABs) 2566
Number of Logic Elements/Cells 25660
Programmable Logic Type FIELD PROGRAMMABLE GATE ARRAY
Organization 2852 CLBS
Data Rate 3.1875 Gbps
Frequency (Max) 650MHz
RAM Size 237.4kB
Number of I/O 607
Memory Size 237.4kB
Min Supply Voltage 1.425V
Max Supply Voltage 1.575V
Temperature Grade OTHER
Power Supplies 1.51.5/3.3V
Qualification Status Not Qualified
Number of Outputs 607
Time@Peak Reflow Temperature-Max (s) 40
Frequency 5GHz
Terminal Pitch 1mm
Supply Voltage 1.5V
Peak Reflow Temperature (Cel) 245
Terminal Form BALL
Terminal Position BOTTOM
Technology CMOS
Subcategory Field Programmable Gate Arrays
HTS Code 8542.39.00.01
Min Operating Temperature 0°C
Max Operating Temperature 85°C
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
ECCN Code 3A001.A.7.A
Moisture Sensitivity Level (MSL) 3
Pbfree Code yes
JESD-609 Code e1
Published 2006
Packaging Bulk
Physical
Number of Pins 1020
Package / Case FBGA
Mount Surface Mount
Supply Chain
Factory Lead Time 12 Weeks
