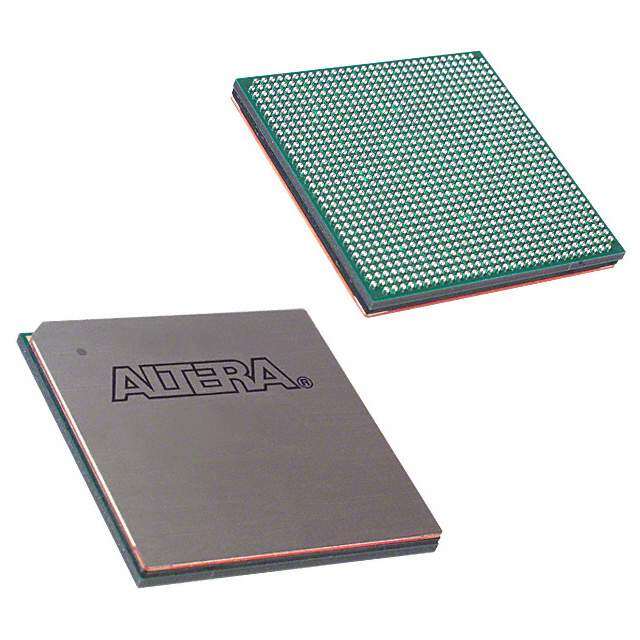

EP1SGX25FF1020C6
RoHS
/
Package FBGA
Category Integrated Circuits (ICs) / Embedded - FPGAs (Field Programmable Gate Array)
Description
Contains Lead CMOS OTHER 2006 FPGA 85C 237.4kB 5GHz 1.575V
PDF
/
Buying Options
Total Price: USD $27.65
Unit Price: USD $27.64975
≥1 USD $27.64975
≥10 USD $22.68695
≥100 USD $21.97825
≥500 USD $21.2686
≥1000 USD $20.5599
≥500 USD $18.43285
Inventory: 52
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mount Surface Mount
Package / Case FBGA
Number of Pins 1020
Technical
Packaging Bulk
Published 2006
JESD-609 Code e0
Pbfree Code no
Moisture Sensitivity Level (MSL) 3
ECCN Code 3A001.A.7.A
Terminal Finish Tin/Lead (Sn63Pb37)
Max Operating Temperature 85°C
Min Operating Temperature 0°C
HTS Code 8542.39.00.01
Subcategory Field Programmable Gate Arrays
Technology CMOS
Terminal Position BOTTOM
Terminal Form BALL
Peak Reflow Temperature (Cel) 220
Supply Voltage 1.5V
Terminal Pitch 1mm
Frequency 5GHz
Time@Peak Reflow Temperature-Max (s) 30
Number of Outputs 614
Operating Supply Voltage 1.5V
Power Supplies 1.51.5/3.3V
Temperature Grade OTHER
Max Supply Voltage 1.575V
Min Supply Voltage 1.425V
Memory Size 237.4kB
Number of I/O 607
RAM Size 237.4kB
Frequency (Max) 650MHz
Data Rate 3.1875 Gbps
Organization 2852 CLBS
Programmable Logic Type FIELD PROGRAMMABLE GATE ARRAY
Number of Logic Elements/Cells 25660
Number of Logic Blocks (LABs) 2566
Number of Transceivers 16
Number of CLBs 2852
Dimensions
Height Seated (Max) 3.5mm
Length 33mm
Width 33mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Lead Free Contains Lead
