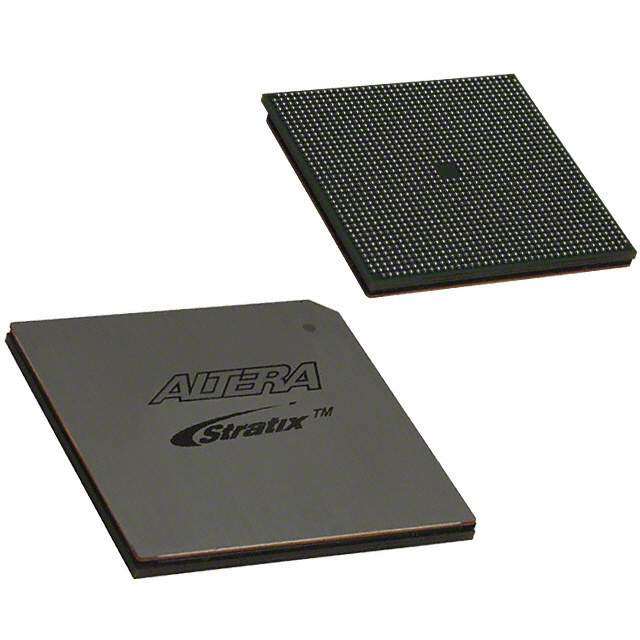

EP1S40F1508C5N
RoHS
/
Package FBGA
Category Integrated Circuits (ICs) / Embedded - FPGAs (Field Programmable Gate Array)
Description
Lead Free CMOS COMMERCIAL EXTENDED 2006 FPGA 85C 145mA 417.9kB 500MHz
PDF
/
Inventory: 971
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mount Surface Mount
Package / Case FBGA
Number of Pins 1508
Technical
Published 2006
JESD-609 Code e1
Pbfree Code yes
Moisture Sensitivity Level (MSL) 3
ECCN Code 3A001.A.7.A
Terminal Finish TIN SILVER COPPER
Max Operating Temperature 85°C
Min Operating Temperature 0°C
HTS Code 8542.39.00.01
Subcategory Field Programmable Gate Arrays
Technology CMOS
Terminal Position BOTTOM
Terminal Form BALL
Peak Reflow Temperature (Cel) 245
Supply Voltage 1.5V
Terminal Pitch 1mm
Frequency 500MHz
Time@Peak Reflow Temperature-Max (s) 40
Number of Outputs 822
Qualification Status Not Qualified
Operating Supply Voltage 1.5V
Power Supplies 1.51.5/3.3V
Temperature Grade COMMERCIAL EXTENDED
Max Supply Voltage 1.575V
Min Supply Voltage 1.425V
Memory Size 417.9kB
Operating Supply Current 145mA
Number of I/O 822
RAM Size 417.9kB
Frequency (Max) 133MHz
Organization 4697 CLBS
Programmable Logic Type FIELD PROGRAMMABLE GATE ARRAY
Number of Logic Elements/Cells 41250
Number of Logic Blocks (LABs) 4125
Number of CLBs 4697
Dimensions
Height Seated (Max) 3.5mm
Length 40mm
Width 40mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
