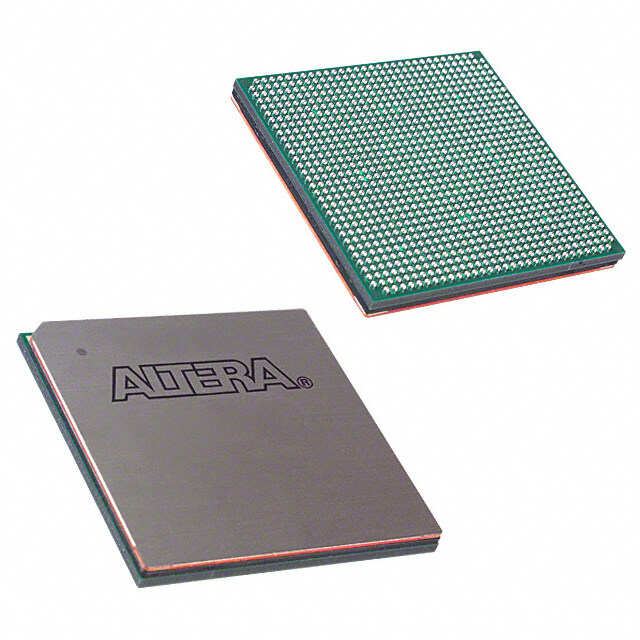

EP1S30F1020C5
RoHS
/
Package FBGA
Category Integrated Circuits (ICs) / Embedded - FPGAs (Field Programmable Gate Array)
Description
CMOS COMMERCIAL EXTENDED 2004 RoHS Compliant FPGA 85C 114mA 404.9kB 500MHz
PDF
/
Buying Options
Total Price: USD $1447.17
Unit Price: USD $1447.1688
≥1 USD $1447.1688
Inventory: 56
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Width 33mm
Length 33mm
Height Seated (Max) 3.5mm
Technical
Number of CLBs 3819
Number of Logic Blocks (LABs) 3247
Number of Logic Elements/Cells 32470
Programmable Logic Type FIELD PROGRAMMABLE GATE ARRAY
Organization 3819 CLBS
Frequency (Max) 133MHz
RAM Size 404.9kB
Number of I/O 726
Operating Supply Current 114mA
Memory Size 404.9kB
Min Supply Voltage 1.425V
Max Supply Voltage 1.575V
Temperature Grade COMMERCIAL EXTENDED
Power Supplies 1.51.5/3.3V
Operating Supply Voltage 1.5V
Number of Outputs 726
Time@Peak Reflow Temperature-Max (s) 30
Frequency 500MHz
Terminal Pitch 1mm
Supply Voltage 1.5V
Peak Reflow Temperature (Cel) 220
Terminal Form BALL
Terminal Position BOTTOM
Technology CMOS
Subcategory Field Programmable Gate Arrays
HTS Code 8542.39.00.01
Min Operating Temperature 0°C
Max Operating Temperature 85°C
Terminal Finish Tin/Lead (Sn63Pb37)
ECCN Code 3A001.A.7.A
Moisture Sensitivity Level (MSL) 3
Pbfree Code no
JESD-609 Code e0
Published 2004
Physical
Number of Pins 1020
Package / Case FBGA
Mount Surface Mount
