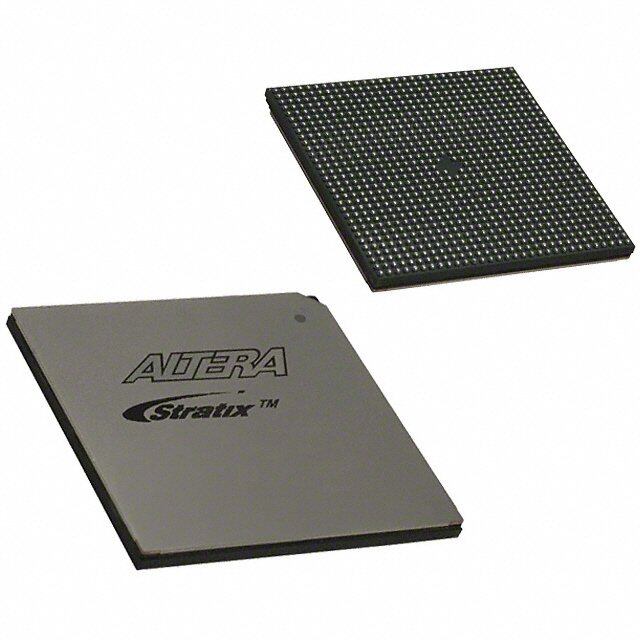

EP1S30B956C5
RoHS
/
Package BGA
Category Integrated Circuits (ICs) / Embedded - FPGAs (Field Programmable Gate Array)
Description
Contains Lead CMOS COMMERCIAL EXTENDED 2006 FPGA 85C 114mA 404.9kB 500MHz
PDF
/
Buying Options
Total Price: USD $1569.37
Unit Price: USD $1569.3744
≥1 USD $1569.3744
Inventory: 128
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
Dimensions
Width 40mm
Length 40mm
Height Seated (Max) 3.5mm
Technical
Number of CLBs 3819
Number of Logic Blocks (LABs) 3247
Number of Logic Elements/Cells 32470
Programmable Logic Type FIELD PROGRAMMABLE GATE ARRAY
Organization 3819 CLBS
Frequency (Max) 133MHz
RAM Size 404.9kB
Number of I/O 683
Operating Supply Current 114mA
Memory Size 404.9kB
Min Supply Voltage 1.425V
Max Supply Voltage 1.575V
Temperature Grade COMMERCIAL EXTENDED
Power Supplies 1.51.5/3.3V
Operating Supply Voltage 1.5V
Qualification Status Not Qualified
Number of Outputs 726
Pin Count 956
Time@Peak Reflow Temperature-Max (s) 30
Frequency 500MHz
Reach Compliance Code not_compliant
Terminal Pitch 1.27mm
Supply Voltage 1.5V
Peak Reflow Temperature (Cel) 220
Terminal Form BALL
Terminal Position BOTTOM
Technology CMOS
Subcategory Field Programmable Gate Arrays
HTS Code 8542.39.00.01
Min Operating Temperature 0°C
Max Operating Temperature 85°C
Terminal Finish Tin/Lead (Sn63Pb37)
ECCN Code 3A001.A.7.A
Number of Terminations 956
Moisture Sensitivity Level (MSL) 3
Pbfree Code no
JESD-609 Code e0
Published 2006
Packaging Bulk
Physical
Number of Pins 956
Package / Case BGA
Mount Surface Mount
