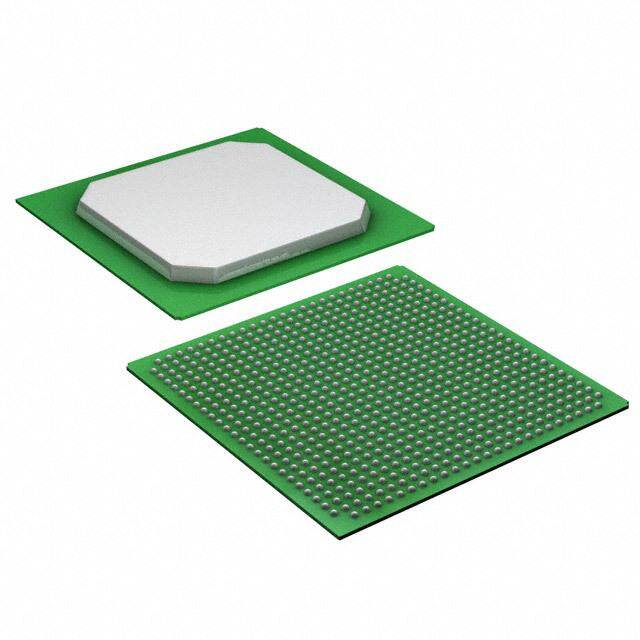

EP1S25B672C6N
RoHS
/
Package BGA
Category Integrated Circuits (ICs) / Embedded - FPGAs (Field Programmable Gate Array)
Description
Lead Free CMOS COMMERCIAL EXTENDED 2006 FPGA 85C 90mA 237.4kB 450.05MHz
PDF
/
Inventory: 4502
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Width 35mm
Length 35mm
Height Seated (Max) 3.5mm
Technical
Number of CLBs 2852
Number of Logic Blocks (LABs) 2566
Number of Logic Elements/Cells 25660
Programmable Logic Type FIELD PROGRAMMABLE GATE ARRAY
Organization 2852 CLBS
Frequency (Max) 100MHz
RAM Size 237.4kB
Number of I/O 473
Operating Supply Current 90mA
Memory Size 237.4kB
Min Supply Voltage 1.425V
Max Supply Voltage 1.575V
Temperature Grade COMMERCIAL EXTENDED
Power Supplies 1.51.5/3.3V
Operating Supply Voltage 1.5V
Qualification Status Not Qualified
Number of Outputs 706
Pin Count 672
Time@Peak Reflow Temperature-Max (s) 40
Frequency 450.05MHz
Terminal Pitch 1.27mm
Supply Voltage 1.5V
Peak Reflow Temperature (Cel) 260
Terminal Form BALL
Terminal Position BOTTOM
Technology CMOS
Subcategory Field Programmable Gate Arrays
HTS Code 8542.39.00.01
Min Operating Temperature 0°C
Max Operating Temperature 85°C
Terminal Finish TIN SILVER COPPER
ECCN Code 3A001.A.7.A
Number of Terminations 672
Moisture Sensitivity Level (MSL) 3
Pbfree Code yes
JESD-609 Code e1
Published 2006
Physical
Number of Pins 672
Package / Case BGA
Mount Surface Mount
Supply Chain
Factory Lead Time 12 Weeks
