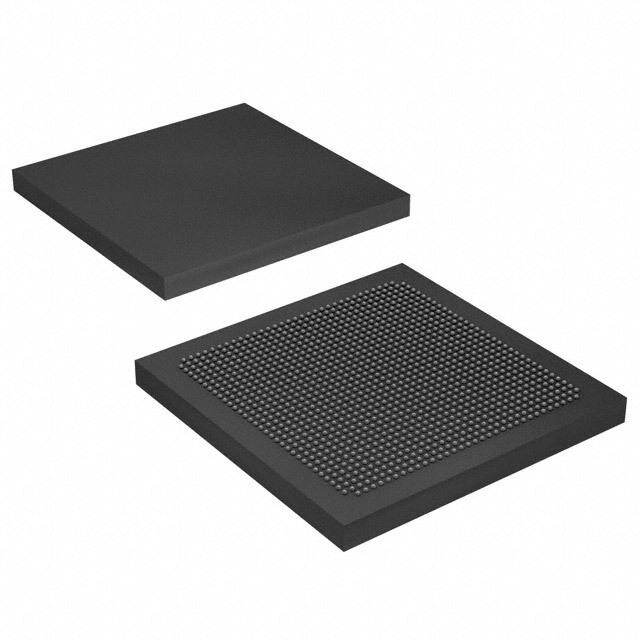

EP1AGX60EF1152C6N
RoHS
/
Package FBGA
Category Integrated Circuits (ICs) / Embedded - FPGAs (Field Programmable Gate Array)
Description
OTHER 2007 RoHS Compliant BALL FPGA 85C 500mA 308.7kB 622.08MHz
PDF
/
Buying Options
Total Price: USD $5366.34
Unit Price: USD $5366.3372
≥1 USD $5366.3372
Inventory: 38
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
REACH SVHC Unknown
Dimensions
Width 35mm
Length 35mm
Height Seated (Max) 3.5mm
Technical
Number of Transceivers 12
Number of Logic Blocks (LABs) 3005
Number of Logic Elements/Cells 60100
Programmable Logic Type FIELD PROGRAMMABLE GATE ARRAY
Data Rate 600 Mbps
Frequency (Max) 622.08MHz
RAM Size 308.7kB
Number of I/O 514
Operating Supply Current 500mA
Memory Size 308.7kB
Min Supply Voltage 1.15V
Max Supply Voltage 1.25V
Temperature Grade OTHER
Power Supplies 1.22.5/3.3V
Qualification Status Not Qualified
Number of Outputs 514
Time@Peak Reflow Temperature-Max (s) 40
Frequency 622.08MHz
Terminal Pitch 1mm
Supply Voltage 1.2V
Peak Reflow Temperature (Cel) 245
Terminal Form BALL
Terminal Position BOTTOM
Subcategory Field Programmable Gate Arrays
HTS Code 8542.39.00.01
Min Operating Temperature 0°C
Max Operating Temperature 85°C
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
ECCN Code 3A001.A.7.A
Moisture Sensitivity Level (MSL) 3
Part Status Active
Pbfree Code yes
JESD-609 Code e1
Published 2007
Physical
Number of Pins 1152
Package / Case FBGA
Mount Surface Mount
Supply Chain
Factory Lead Time 12 Weeks
