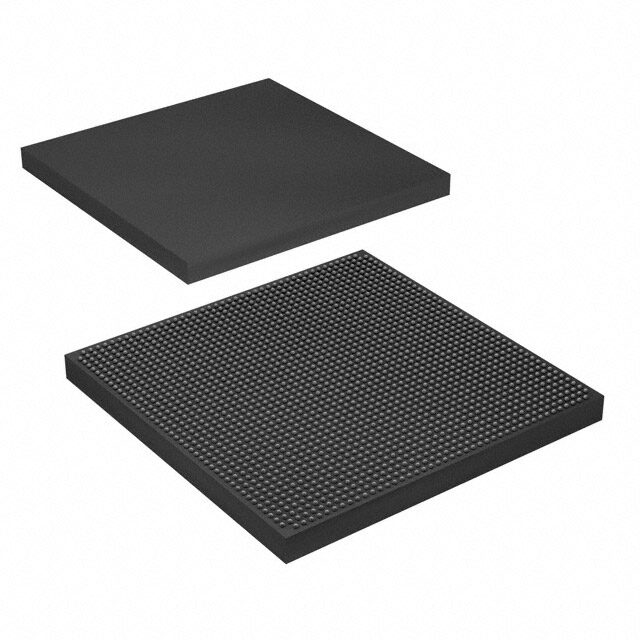

5SGSED6N2F45C2N image
Favorite
5SGSED6N2F45C2N image
Favorite

5SGSED6N2F45C2N

Altera
RoHS
/
Package FBGA
Category Integrated Circuits (ICs) / Embedded - FPGAs (Field Programmable Gate Array)
Description Lead Free CMOS OTHER 2013 FPGA 85C 14.1Gbps 930mV 4.1mm
PDF
/
Inventory: 5318
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Package / Case FBGA
Surface Mount YES
Number of Pins 1932

Technical

Published 2013
JESD-609 Code e1
Pbfree Code yes
ECCN Code 3A001.A.7.A
Terminal Finish TIN SILVER COPPER
Max Operating Temperature 85°C
Min Operating Temperature 0°C
Subcategory Field Programmable Gate Arrays
Technology CMOS
Terminal Position BOTTOM
Terminal Form BALL
Peak Reflow Temperature (Cel) 245
Supply Voltage 0.85V
Terminal Pitch 1mm
Time@Peak Reflow Temperature-Max (s) 40
Number of Outputs 840
Qualification Status Not Qualified
Operating Supply Voltage 930mV
Supply Voltage-Max (Vsup) 0.88V
Temperature Grade OTHER
RAM Size 6.5MB
Data Rate 14.1 Gbps
Programmable Logic Type FIELD PROGRAMMABLE GATE ARRAY
Number of Logic Elements/Cells 583000
Number of Logic Blocks (LABs) 220000
Speed Grade 2
Number of Transceivers 48
Number of GPIO 840

Dimensions

Height Seated (Max) 4.1mm
Length 45mm
Width 45mm

Compliance

RoHS Status RoHS Compliant
Lead Free Lead Free
