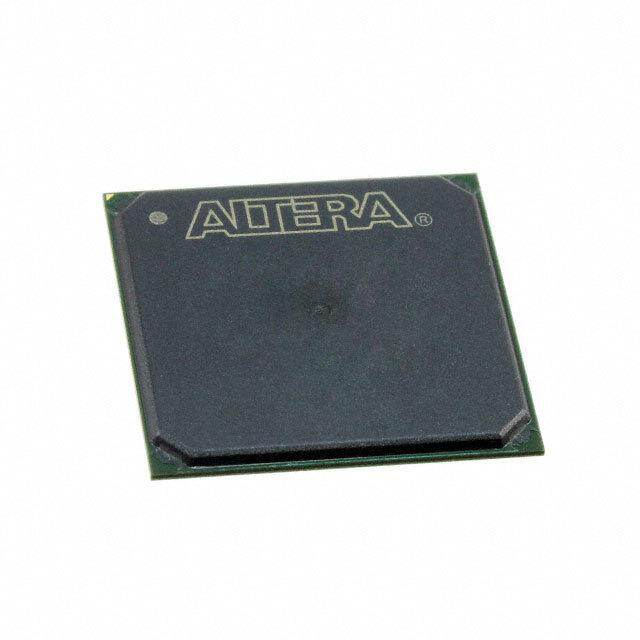

5CSEMA4U23A7N
RoHS
/
Package FBGA
Category Integrated Circuits (ICs) / Embedded - FPGAs (Field Programmable Gate Array)
Description
ARM CMOS AUTOMOTIVE DMA POR WDT FPGA 125C 2.9MB 700MHz 1.1V
PDF
/
Inventory: 2493
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Package / Case FBGA
Surface Mount YES
Number of Pins 484
Technical
Published 2016
Part Status Active
Number of Terminations 672
Max Operating Temperature 125°C
Min Operating Temperature -40°C
HTS Code 8542.39.00.01
Subcategory Field Programmable Gate Arrays
Technology CMOS
Terminal Position BOTTOM
Terminal Form BALL
Peak Reflow Temperature (Cel) NOT SPECIFIED
Supply Voltage 1.1V
Terminal Pitch 0.8mm
Frequency 700MHz
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Pin Count 672
JESD-30 Code S-PBGA-B672
Number of Outputs 145
Qualification Status Not Qualified
Operating Supply Voltage 1.1V
Supply Voltage-Max (Vsup) 1.13V
Power Supplies 1.11.2/3.32.5V
Temperature Grade AUTOMOTIVE
Interface CAN, EBI/EMI, Ethernet, I2C, MMC, SD, SDIO, SPI, UART, USART, USB
Memory Size 2.9MB
Peripherals DMA, POR, WDT
Programmable Logic Type FIELD PROGRAMMABLE GATE ARRAY
Number of Logic Elements/Cells 40000
Core Architecture ARM
Dimensions
Height Seated (Max) 1.85mm
Length 23mm
Width 23mm
Compliance
RoHS Status RoHS Compliant
