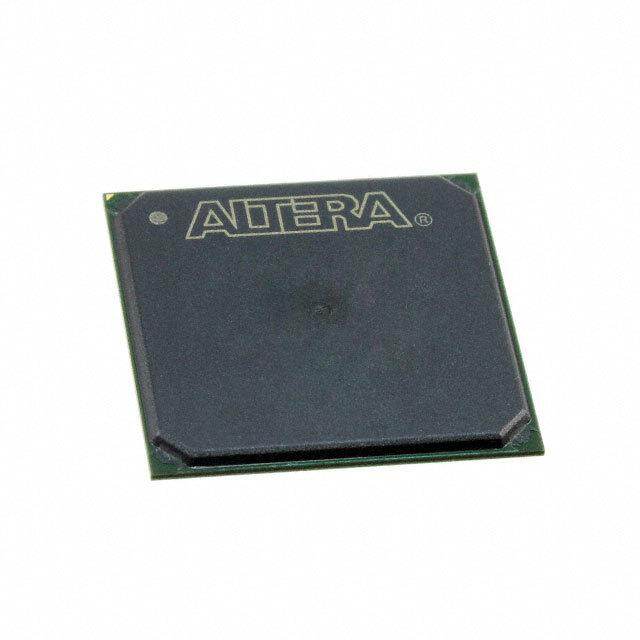

5CSEMA2U23C6N
RoHS
/
Package FBGA
Category Integrated Circuits (ICs) / Embedded - FPGAs (Field Programmable Gate Array)
Description
ARM CMOS OTHER DMA POR WDT FPGA 85C 1.5MB 925MHz 1.1V
PDF
/
Buying Options
Total Price: USD $166.43
Unit Price: USD $166.426659
≥1 USD $166.426659
≥200 USD $64.404718
≥500 USD $64.404718
≥1000 USD $61.023105
Inventory: 1328
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Package / Case FBGA
Surface Mount YES
Number of Pins 484
Technical
Published 2015
Part Status Active
Number of Terminations 672
Max Operating Temperature 85°C
Min Operating Temperature 0°C
HTS Code 8542.39.00.01
Subcategory Field Programmable Gate Arrays
Technology CMOS
Terminal Position BOTTOM
Terminal Form BALL
Peak Reflow Temperature (Cel) NOT SPECIFIED
Supply Voltage 1.1V
Terminal Pitch 0.8mm
Frequency 925MHz
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Pin Count 672
JESD-30 Code S-PBGA-B672
Number of Outputs 145
Qualification Status Not Qualified
Operating Supply Voltage 1.1V
Supply Voltage-Max (Vsup) 1.13V
Power Supplies 1.11.2/3.32.5V
Temperature Grade OTHER
Interface CAN, EBI/EMI, Ethernet, I2C, MMC, SD, SDIO, SPI, UART, USART, USB
Memory Size 1.5MB
Peripherals DMA, POR, WDT
Programmable Logic Type FIELD PROGRAMMABLE GATE ARRAY
Number of Logic Elements/Cells 25000
Core Architecture ARM
Dimensions
Height Seated (Max) 1.85mm
Length 23mm
Width 23mm
Compliance
RoHS Status RoHS Compliant
