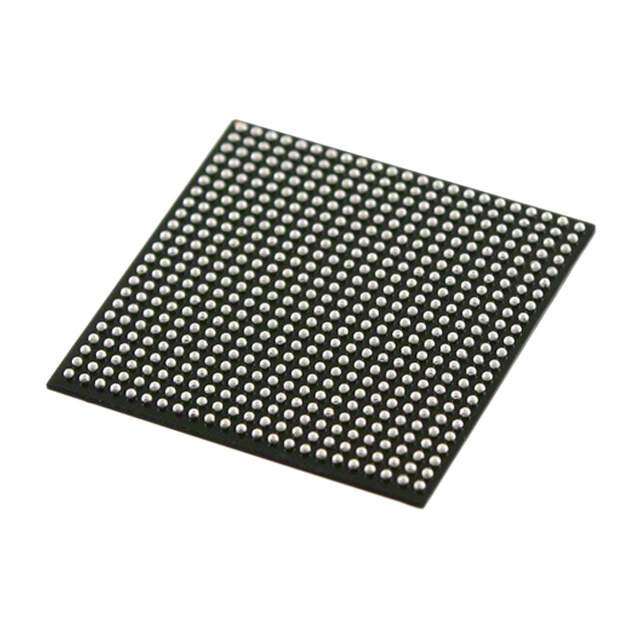

5CGXFC9C7F23C8N
RoHS
/
Package FBGA
Category Integrated Circuits (ICs) / Embedded - FPGAs (Field Programmable Gate Array)
Description
CMOS OTHER 2015 RoHS Compliant FPGA 85C 1.7MB 800MHz 1.13V
PDF
/
Inventory: 8513
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Package / Case FBGA
Surface Mount YES
Number of Pins 484
Technical
Published 2015
JESD-609 Code e1
Moisture Sensitivity Level (MSL) 3
Number of Terminations 484
Terminal Finish TIN SILVER COPPER
Max Operating Temperature 85°C
Min Operating Temperature 0°C
Subcategory Field Programmable Gate Arrays
Technology CMOS
Terminal Position BOTTOM
Terminal Form BALL
Peak Reflow Temperature (Cel) NOT SPECIFIED
Supply Voltage 1.1V
Terminal Pitch 1mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Pin Count 484
Number of Outputs 224
Qualification Status Not Qualified
Operating Supply Voltage 1.13V
Power Supplies 1.11.2/3.32.5V
Temperature Grade OTHER
Memory Size 1.7MB
RAM Size 1.7MB
Frequency (Max) 800MHz
Data Rate 2.5 Gbps
Programmable Logic Type FIELD PROGRAMMABLE GATE ARRAY
Number of Logic Elements/Cells 301000
Number of Logic Blocks (LABs) 113560
Speed Grade 8
Number of Transceivers 6
Number of GPIO 224
Dimensions
Height Seated (Max) 2mm
Length 23mm
Width 23mm
Compliance
RoHS Status RoHS Compliant
