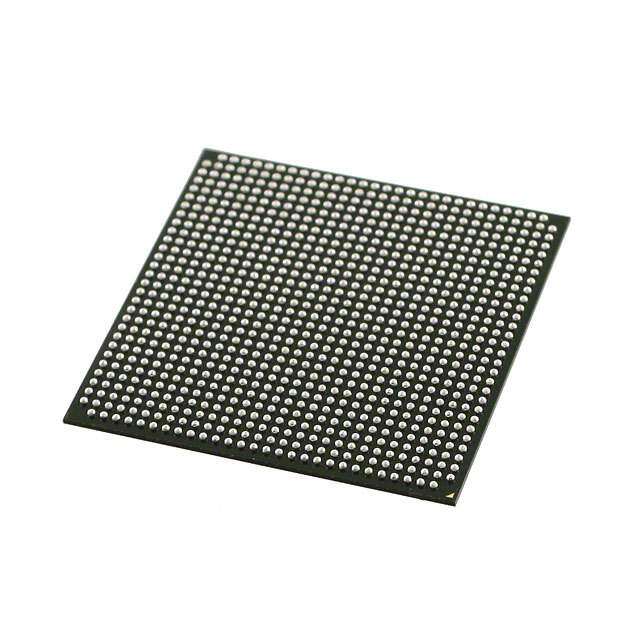

5ASXMB3E4F31C6N
RoHS
/
Package FBGA
Category Integrated Circuits (ICs) / Embedded - FPGAs (Field Programmable Gate Array)
Description
ARM OTHER DMA POR WDT 2013 FPGA 85C 2.4MB 700MHz 1.07V
PDF
/
Inventory: 986
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 31mm
Length 31mm
Height Seated (Max) 2.7mm
Technical
Number of Logic Blocks (LABs) 132075
Core Architecture ARM
Number of Logic Elements/Cells 350000
Programmable Logic Type FIELD PROGRAMMABLE GATE ARRAY
Peripherals DMA, POR, WDT
RAM Size 2.4MB
Number of I/O 170
Interface EBI/EMI, Ethernet, I2C, MMC, SD, SDIO, SPI, UART, USART, USB
Supply Voltage-Min (Vsup) 1.07V
Temperature Grade OTHER
Supply Voltage-Max (Vsup) 1.13V
JESD-30 Code S-PBGA-B896
Pin Count 896
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Frequency 700MHz
Terminal Pitch 1mm
Supply Voltage 1.1V
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form BALL
Terminal Position BOTTOM
HTS Code 8542.39.00.01
Min Operating Temperature 0°C
Max Operating Temperature 85°C
Terminal Finish TIN SILVER COPPER
Number of Terminations 896
Pbfree Code yes
JESD-609 Code e1
Published 2013
Physical
Package / Case FBGA
Mount Surface Mount
