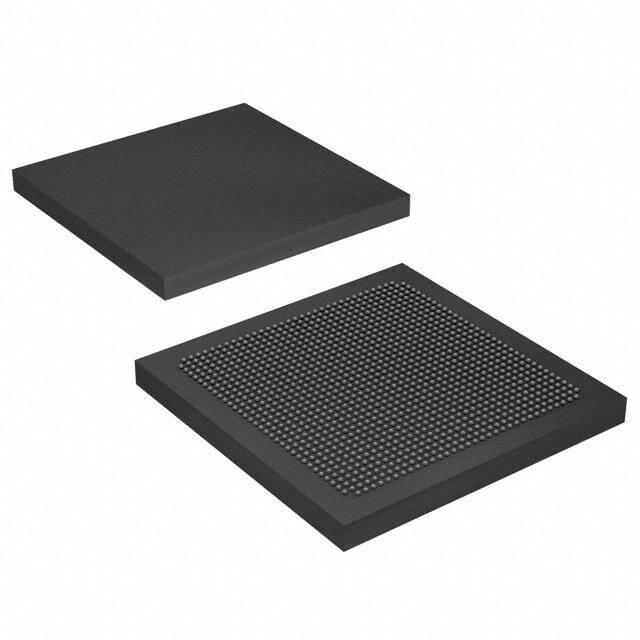

5ASXFB3G4F35C5N
RoHS
/
Package FBGA
Category Integrated Circuits (ICs) / Embedded - FPGAs (Field Programmable Gate Array)
Description
ARM CMOS OTHER DMA POR WDT FPGA 85C 18.8MB 800MHz 1.1V
PDF
/
Inventory: 9864
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 35mm
Length 35mm
Height Seated (Max) 2.7mm
Technical
Number of Transceivers 18
Number of Logic Blocks (LABs) 132075
Core Architecture ARM
Number of Logic Elements/Cells 350000
Programmable Logic Type FIELD PROGRAMMABLE GATE ARRAY
Number of Inputs 350
Data Rate 6.375 Gbps
Peripherals DMA, POR, WDT
RAM Size 2.4MB
Number of I/O 350
Memory Size 18.8MB
Interface EBI/EMI, Ethernet, I2C, MMC, SD, SDIO, SPI, UART, USART, USB
Temperature Grade OTHER
Power Supplies 1.11.2/3.32.5V
Supply Voltage-Max (Vsup) 1.13V
Operating Supply Voltage 1.1V
Qualification Status Not Qualified
Number of Outputs 350
JESD-30 Code S-PBGA-B1152
Pin Count 1152
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Frequency 800MHz
Terminal Pitch 1mm
Supply Voltage 1.1V
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form BALL
Terminal Position BOTTOM
Technology CMOS
Subcategory Field Programmable Gate Arrays
Min Operating Temperature 0°C
Max Operating Temperature 85°C
Terminal Finish TIN SILVER COPPER
Number of Terminations 1152
Part Status Active
Pbfree Code yes
JESD-609 Code e1
Published 2012
Physical
Package / Case FBGA
Mount Surface Mount
Supply Chain
Factory Lead Time 12 Weeks
