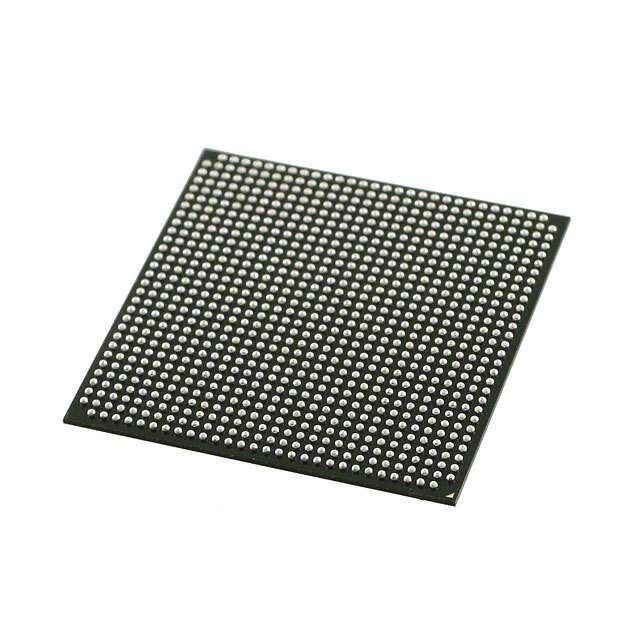

5ASXBB3D4F31C6N
RoHS
/
Package FBGA
Category Integrated Circuits (ICs) / Embedded - FPGAs (Field Programmable Gate Array)
Description
ARM OTHER DMA POR WDT 2013 FPGA 85C 2.4MB 700MHz 1.07V
PDF
/
Inventory: 7939
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Package / Case FBGA
Technical
Published 2013
JESD-609 Code e1
Pbfree Code yes
Number of Terminations 896
Terminal Finish TIN SILVER COPPER
Max Operating Temperature 85°C
Min Operating Temperature 0°C
HTS Code 8542.39.00.01
Terminal Position BOTTOM
Terminal Form BALL
Peak Reflow Temperature (Cel) NOT SPECIFIED
Supply Voltage 1.1V
Terminal Pitch 1mm
Frequency 700MHz
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Pin Count 896
JESD-30 Code S-PBGA-B896
Supply Voltage-Max (Vsup) 1.13V
Temperature Grade OTHER
Supply Voltage-Min (Vsup) 1.07V
Interface EBI/EMI, Ethernet, I2C, MMC, SD, SDIO, SPI, UART, USART, USB
Number of I/O 170
RAM Size 2.4MB
Peripherals DMA, POR, WDT
Programmable Logic Type FIELD PROGRAMMABLE GATE ARRAY
Number of Logic Elements/Cells 350000
Core Architecture ARM
Number of Logic Blocks (LABs) 132075
Dimensions
Height Seated (Max) 2.7mm
Length 31mm
Width 31mm
Compliance
RoHS Status RoHS Compliant
