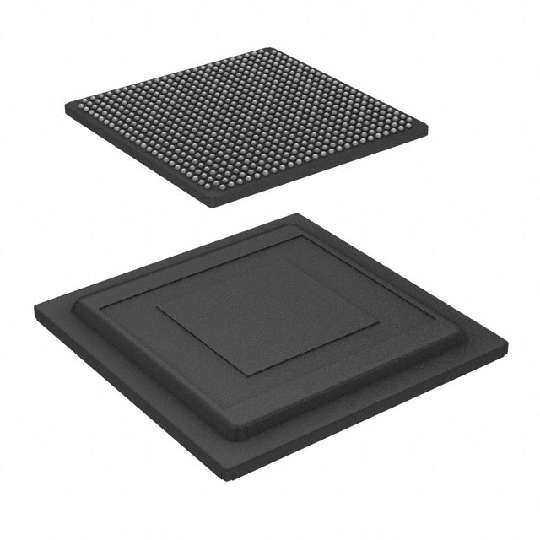

5AGXMA5D4F27I5N
RoHS
/
Package FBGA
Category Integrated Circuits (ICs) / Embedded - FPGAs (Field Programmable Gate Array)
Description
Lead Free CMOS 2009 RoHS Compliant FPGA 100C 1.6MB 800MHz 1.13V
PDF
/
Inventory: 5463
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Width 27mm
Length 27mm
Height Seated (Max) 2.7mm
Technical
Number of GPIO 336
Number of Transceivers 9
Speed Grade 5
Number of Logic Blocks (LABs) 8962
Number of Logic Elements/Cells 190000
Programmable Logic Type FIELD PROGRAMMABLE GATE ARRAY
Data Rate 6.5536 Gbps
Frequency (Max) 800MHz
RAM Size 1.6MB
Memory Size 1.6MB
Operating Supply Voltage 1.13V
Qualification Status Not Qualified
Number of Outputs 336
Pin Count 672
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 1mm
Supply Voltage 1.1V
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form BALL
Terminal Position BOTTOM
Technology CMOS
Subcategory Field Programmable Gate Arrays
Min Operating Temperature -40°C
Max Operating Temperature 100°C
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Number of Terminations 672
Moisture Sensitivity Level (MSL) 3
Pbfree Code yes
JESD-609 Code e1
Published 2009
Physical
Number of Pins 672
Surface Mount YES
Package / Case FBGA
Supply Chain
Factory Lead Time 15 Weeks
