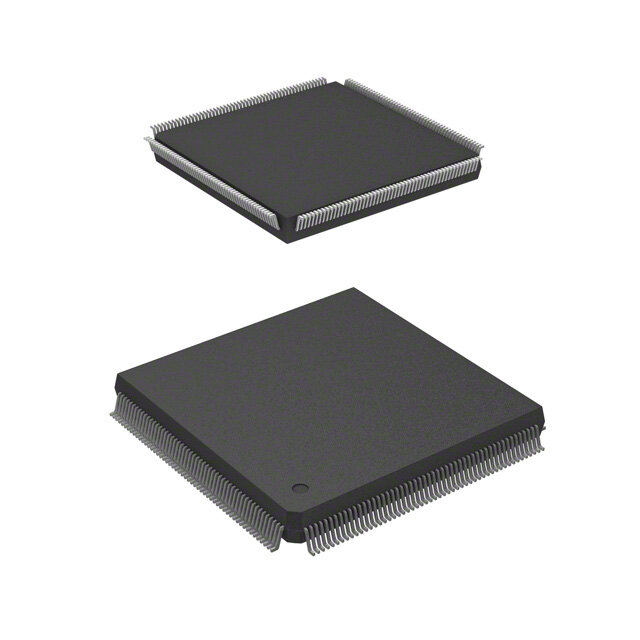

A54SX32A-PQ208
RoHS
/
Package PQFP
Category Integrated Circuits (ICs) / Embedded - FPGAs (Field Programmable Gate Array)
Description
CMOS COMMERCIAL 2007 RoHS Compliant FPGA 70C 1.2ns 238MHz 2.75V
PDF
/
Buying Options
Total Price: USD $185.04
Unit Price: USD $185.03815
≥1 USD $185.03815
≥10 USD $165.89565
Inventory: 508
Minimum: 1
-
+
Technical Details
Supply Chain
Lifecycle Status OBSOLETE (Last Updated: 1 month ago)
Physical
Mount Surface Mount
Package / Case PQFP
Number of Pins 208
Technical
Published 2007
JESD-609 Code e0
Moisture Sensitivity Level (MSL) 3
Number of Terminations 208
Terminal Finish Tin/Lead (Sn/Pb)
Max Operating Temperature 70°C
Min Operating Temperature 0°C
Additional Feature 32000 TYPICAL GATES AVAILABLE
Subcategory Field Programmable Gate Arrays
Technology CMOS
Terminal Position QUAD
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 225
Supply Voltage 2.5V
Terminal Pitch 0.5mm
Frequency 238MHz
Time@Peak Reflow Temperature-Max (s) 30
Number of Outputs 174
Operating Supply Voltage 2.5V
Power Supplies 2.53.3/5V
Temperature Grade COMMERCIAL
Max Supply Voltage 2.75V
Min Supply Voltage 2.25V
Number of I/O 174
Propagation Delay 1.2 ns
Turn On Delay Time 1.2 ns
Frequency (Max) 238MHz
Programmable Logic Type FIELD PROGRAMMABLE GATE ARRAY
Number of Gates 48000
Number of Logic Blocks (LABs) 2880
Number of Registers 1980
Dimensions
Height 3.4mm
Length 28mm
Width 28mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
