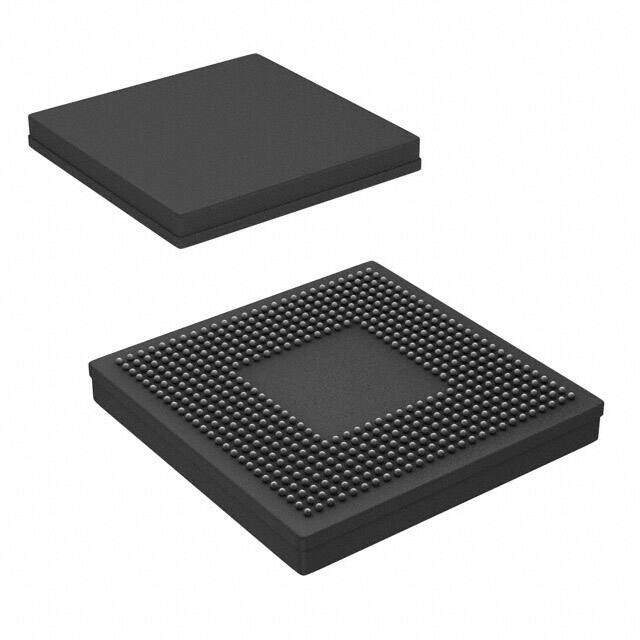

TMS320C6414TBGLZ8
RoHS
/
Package 532-BFBGA, FCBGA
Category Integrated Circuits (ICs) / Embedded - DSP (Digital Signal Processors)
Description
TMS320C6414T/15T/16T MULTIPLE Contains Lead Surface Mount DSP 0C~90C TC 16b 850MHz 3.131403g
PDF
/
Buying Options
Total Price: USD $2.49
Unit Price: USD $2.489
≥1 USD $2.489
≥10 USD $2.0425
≥100 USD $1.97885
≥500 USD $1.91425
≥1000 USD $1.8506
Inventory: 54
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
Dimensions
Length 23mm
Height Seated (Max) 3.25mm
Technical
On Chip Data RAM 1.03MB
Voltage - Core 1.20V
Non-Volatile Memory External
Internal Bus Architecture MULTIPLE
Barrel Shifter NO
Voltage - I/O 3.30V
RAM (words) 262144
Low Power Mode YES
Boundary Scan YES
Address Bus Width 23
Data Bus Width 16b
Bit Size 32
Interface Host Interface, McBSP, PCI, UTOPIA
Supply Voltage-Max (Vsup) 1.24V
Operating Supply Voltage 3.3V
Qualification Status Not Qualified
Pin Count 532
Base Part Number 320C6414
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Frequency 850MHz
Reach Compliance Code not_compliant
Terminal Pitch 0.8mm
Supply Voltage 1.2V
Peak Reflow Temperature (Cel) 220
Terminal Form BALL
Terminal Position BOTTOM
Technology CMOS
Subcategory Digital Signal Processors
HTS Code 8542.31.00.01
Additional Feature ALSO REQUIRES 3.3V SUPPLY
Terminal Finish Tin/Lead (Sn/Pb)
Type Fixed Point
ECCN Code 3A001.A.3
Number of Terminations 532
Moisture Sensitivity Level (MSL) 4 (72 Hours)
Part Status Obsolete
Pbfree Code no
JESD-609 Code e0
Series TMS320C6414T/15T/16T
Packaging Tray
Operating Temperature 0°C~90°C TC
Physical
Weight 3.131403g
Number of Pins 532
Package / Case 532-BFBGA, FCBGA
Mounting Type Surface Mount
Mount Surface Mount
