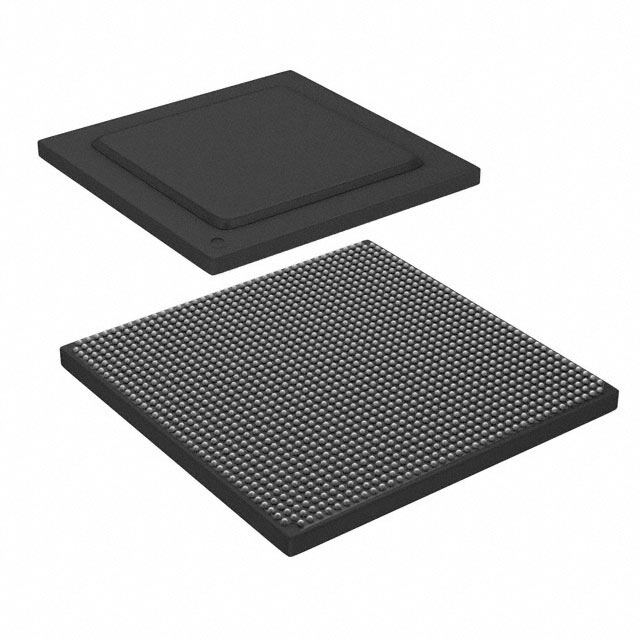

66AK2H14AAAWA24
RoHS
RoHS compliant
RoHS compliantPackage 1517-BBGA, FCBGA
Category Integrated Circuits (ICs) / Embedded - DSP (Digital Signal Processors)
Description
EBI/EMI Ethernet DMA I2C Serial RapidIO SPI UART/USART USB 3.0 1517-BBGA FCBGA 66AK2H14 3A001.A.3 digital signal processor Variable 40mm 1.4GHz 6MB
PDF
/
Inventory: 6832
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Length 40mm
Height Seated (Max) 3.75mm
Technical
Clock Rate 1.2GHz DSP, 1.4GHz ARM?
On Chip Data RAM 12.75MB
Voltage - Core Variable
Non-Volatile Memory ROM (384kB)
Number of UART Channels 2
Voltage - I/O 0.85V 1.0V 1.35V 1.5V 1.8V 3.3V
Integrated Cache YES
Format FLOATING POINT
Low Power Mode YES
Boundary Scan YES
Address Bus Width 24
Data Bus Width 32b
RAM Size 6MB
Speed 1400 MHz
Interface EBI/EMI, Ethernet, DMA, I2C, Serial RapidIO, SPI, UART/USART, USB 3.0
Supply Voltage-Min (Vsup) 0.95V
Supply Voltage-Max (Vsup) 1.05V
JESD-30 Code S-PBGA-B1517
Base Part Number 66AK2H14
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Frequency 1.4GHz
Terminal Pitch 1mm
Supply Voltage 1V
Peak Reflow Temperature (Cel) 245
Terminal Form BALL
Terminal Position BOTTOM
Technology CMOS
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Type DSP+ARM?
ECCN Code 3A001.A.3
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Obsolete
Pbfree Code yes
JESD-609 Code e1
Series 66AK2Hx KeyStone Multicore
Packaging Tray
Operating Temperature -40°C~100°C TC
Physical
Package / Case 1517-BBGA, FCBGA
Mounting Type Surface Mount
Mount Surface Mount
