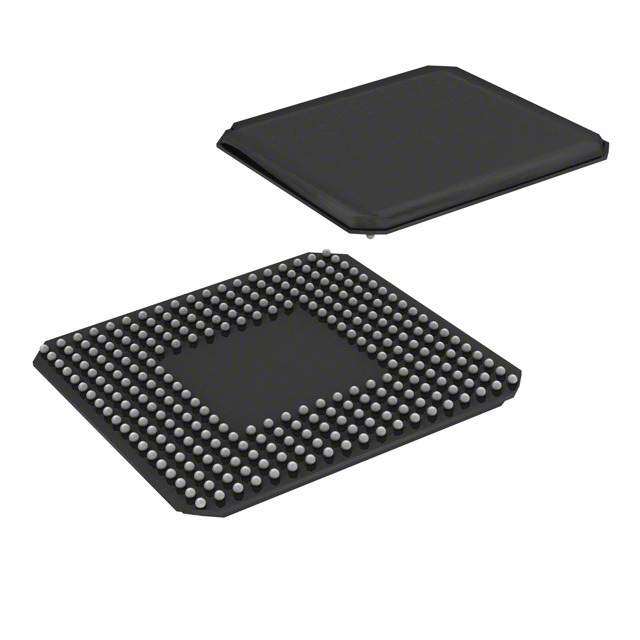

XCR3256XL-7CS280C
RoHS
/
Package TFBGA
Category Integrated Circuits (ICs) / Embedded - CPLDs (Complex Programmable Logic Devices)
Description
MACROCELL Active Surface Mount COMMERCIAL complex programmable logic device 70C 3.3V 7.5ns 1.2mm
PDF
/
Inventory: 7428
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
Dimensions
Height Seated (Max) 1.2mm
Technical
In-System Programmable YES
JTAG BST YES
Number of Macro Cells 256
Output Function MACROCELL
Speed Grade 7
Number of Logic Blocks (LABs) 16
Number of Gates 6000
Programmable Logic Type EE PLD
Frequency (Max) 154MHz
Propagation Delay 7.5 ns
Memory Type EEPROM
Number of I/O 164
Temperature Grade COMMERCIAL
Supply Voltage-Max (Vsup) 3.6V
Operating Supply Voltage 3.3V
Qualification Status Not Qualified
Pin Count 280
Time@Peak Reflow Temperature-Max (s) 30
Terminal Pitch 0.8mm
Supply Voltage 3.3V
Peak Reflow Temperature (Cel) 240
Terminal Form BALL
Terminal Position BOTTOM
Technology CMOS
Subcategory Programmable Logic Devices
HTS Code 8542.39.00.01
Additional Feature YES
Min Operating Temperature 0°C
Max Operating Temperature 70°C
ECCN Code EAR99
Number of Terminations 280
Moisture Sensitivity Level (MSL) 3
Part Status Active
Pbfree Code no
JESD-609 Code e0
Published 2003
Packaging Bulk
Physical
Number of Pins 280
Package / Case TFBGA
Mount Surface Mount
Supply Chain
Factory Lead Time 6 Weeks
